• 2k 4k 8k Mini LED Display Panel P1.5mm Small Pitch HD Government
  • 2k 4k 8k Mini LED Display Panel P1.5mm Small Pitch HD Government
2k 4k 8k Mini LED Display Panel P1.5mm Small Pitch HD Government

2k 4k 8k Mini LED Display Panel P1.5mm Small Pitch HD Government

Product Details:

Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P1.5

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: USD1500-5500/㎡
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 500㎡/week
Get Best Price Contact Now

Detail Information

Application: Indoor Pixel Pitch:: 1.5625
Size Of Panel: 600x337.5mm Configuration: SMD1010
Brightness: 850nits Warranty: 3-5 Years
High Light:

8k Mini LED Display Panel

,

4k Mini LED Display Panel

,

2k mini led panels

Product Description

HD Inddor Government P1.5mm Small Pitch 2k 4k 8k Mini LED Display Panel



Quick Details:

1.Easy Setup: Back modules are made easier for connection.

2.Standard Size: We use professional buckles and standard modular panels which can snap together easily.

3.Energy -saving: Our products get low energy cost and high efficiency.

4.LED Screen adopts magnetic adsorption LED panels with ultra thin design,





Advantage:

1. High brightness and be adjustable. Built-in functional card support brightness automatically adjustment.
2. A turn-key solution including professional sports software and hardware.
3. Rich advertising LED display engineering experience both in domestic and oversea market.
4. Ledmanner product stability through strict quality control system.
5. Price Advantage: Best competitive price for Indoor led screen.
6. Performance Advantage: Best equality, high consistency, High refresh rate, high consistency, Best brightness, big viewing angle...
7. Quality advantage: From material to finished product, from design to produce, we control all steps, include the guarantee of the quality and reliability.
8. Service advantage: with professional service team for 24 hours service, Better service at same situation, better cooperation at same service.





Specification:

Product Name

 P0.9 Small Pixel Wall

P1.25 Small Pixel Wall

P1.56 Small Pixel Wall

P1.875 Small Pixel Wall

Pixel pitch(mm)

0.9375mm

1.25mm

1.5625mm

1.875mm

Pixel Density(dot/m2)

1137778 Dots

640000 Dots

409600 Dots

284444 Dots

LED Type

MINI4in1

SMD1010

SMD1010

SMD1515

Module Size(mm)

300 x 168.75mm

Module resolution

320 x 180 Pixel

240 x 135 Pixel

192 x 108 Pixel

160 x 90 Pixel

Power Consumption per Module(w)

50w

48w

45w

42w

Diver Mode(Scan)

1/60 Scan

1/45 Scan

1/54 Scan

1/45 Scan

Brightness(cd/m2)

≥800 cd/m2

Grey Scale(bits)

16 Bits

Refresh Rate(Hz)

≥3840 HZ



Cabinet Size

600 x 337.5 x 32.5mm

Cabinet Weight

4.2kg

Max Power (W/m2)

400w

450w

Average Power

250w

View Angle(H°/V°)

160°/160°

Mini View Distance(m)

0.5m

1m

Operating Use Temperature(℃)

-10° ~ 40°

Storage Use Temperature(℃)

-20° ~ 50°

Input Voltage(V)

100 ~240V

Input Frequency(Hz)

50 ~ 60Hz

Failure Rate

<1/100000

Signal Input Format

SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc.

Life Time(hrs)

100000

IP Level(front/rear)

IP30

Remark:

If the parameters may be updated, please contact us for the latest parameters.



Product Picture:

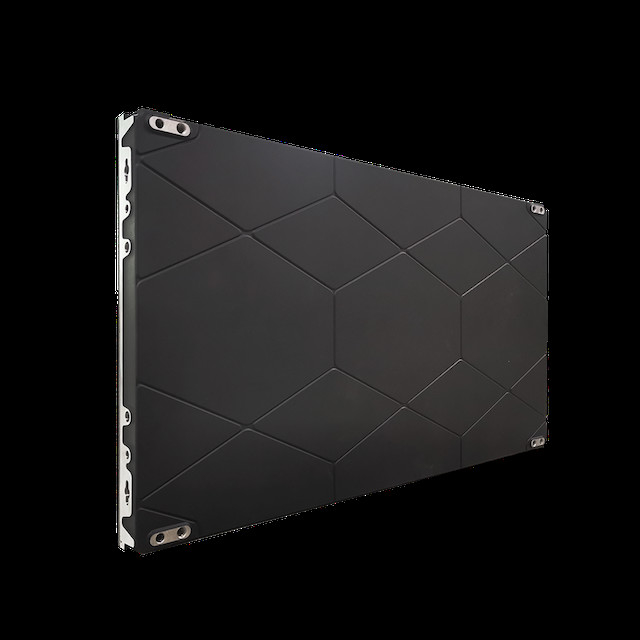

2k 4k 8k Mini LED Display Panel P1.5mm Small Pitch HD Government 0

2k 4k 8k Mini LED Display Panel P1.5mm Small Pitch HD Government 1



Service:

1. Your inquiry related to our products or price will be replied in 24hrs as soon as possible.
2. Protection of your sales information,ideas of design and all your private information
3. Top quality+ reliable price+responsible after service=successful



Technology Training
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.

Documents and Certification
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.

CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.



Application field:

Indoor P1.5 display screenis widely used in surveillance centers, video conferencing, concerts, weddings, stage Settings, exhibitions, stadiums, banks, government offices, docks, stations, stock markets, hospitals, museums, libraries and so on



FAQ:

1 Q: How fast can I get reply from your company?

A: During working days, usually within 2 hours, you will get reply from our professional sales team.



2 Q: What is your current lead time?

A: Usually no more than 25 days; and some products are in stock for quick delivery.



3 Q: What pixel pitch can you provide? And what product do you have?

A : Indoor Series from P0.9 to P5, outdoor from P2.5 to P10. We offers a wide range of LED displays, manufacturing,sales, and exportation of indoor and outdoor fixed/rental led display, LED Sphere, LED cube, LED transparent window glass display, and customized led projects etc.



4 Q: What kind of sending/receiving cards are used?

A: Novastar/Colorlight/Linsn. Mostly use Novastar
