P1.25 Mini LED Display Panel

P1.25 Mini LED Display Panel

Product Details:

Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P1.25

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: USD1500-5500/㎡
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 500㎡/week
Get Best Price Contact Now

Detail Information

Application: Indoor Warranty: 2 Years
Size Of Panel: 600*337.5mm Cabinet Material: Die-casting Aluminum
Usage: Meeting Room Certificate: CE/CCC/FCC/ROHS/ISO9001
High Light:

P1.25 Mini LED Display Panel

,

337.5mm Mini LED Display Panel

,

600mm mini screen display

Product Description

P1.25 HD Indoor Full Color Fine Pitched Tv Video 4K Electronic Mini LED Display Panel



Quick Details:

● Easy maintaince and service(Mini LED Display Panel)

● Ledmanner MS-Plus with P1.2 P1.5 P1.6 P1.8

● Perfect screen flatness

● Support fully front service

● 320mm*160mm size module

● 640mm*480mm size cabinet

● Different modules use same magnetic cabinet



Description:

Fine Small Pixel Pitch:directly wall-mounting installation with no structures

a. Cabinet thickness: Stunning slim 40mm ONLY.
b. High refresh rate high grey Scale: 3840Hz at 16bits.
c. Cabinet size: 600*337.5mm.
d. Maintenance: full front service.





Specification:

Model No.

MINI-P1.25

MINI-P1.56

Pixel pitch

1.25mm

1.56mm

LED Type

SMD 1010

SMD 1010

Pixel Density

640000 pixel/㎡

409600 pixel/㎡

Scan

1/60scan

1/48 scan

Cabinet Material

Die casting aluminum

Cabinet Dimension (W*H*D)

600mm×337.5mm×38mm 23.6’’×13.3’’×1.5’’

Cabinet Wight

11kg

11kg

Cabinet Resolution

480*270 dots

384*216dots

Max power Consumption

≤800w/㎡

≤800w/㎡

Average power Consumption

280w/㎡

Brightness

200-800cd/㎡

Viewing Angle

H: 160° V:160°

Refresh Rate

3840hz

Gray Scale

16 bits

High contrast

6000:1

5000:1

IP Rating

IP Rating

IP41

Operating Temperature

Operating Temperature

-10℃~ +60 ℃

Lifetime

Lifetime

100,000hrs

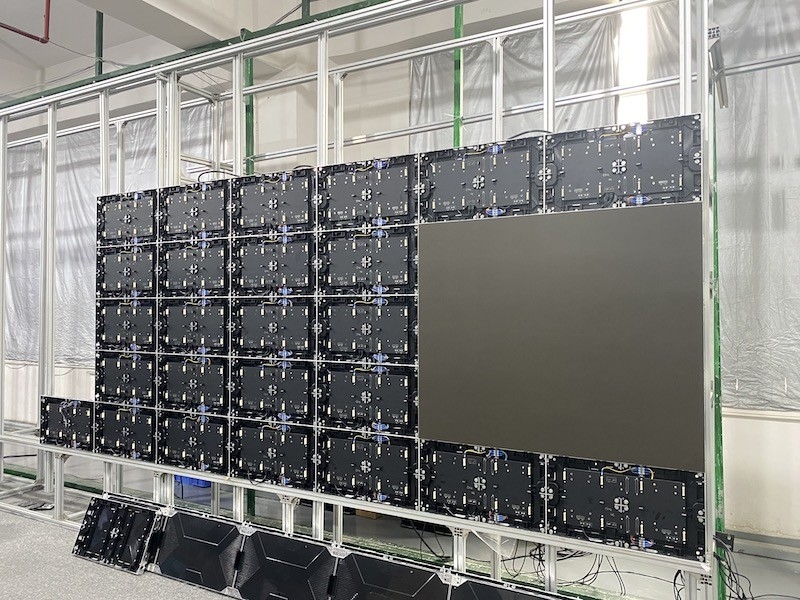

Product Picture:

P1.25 Mini LED Display Panel 0
P1.25 Mini LED Display Panel 1



Product Advantage :

1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under direct sunlight.
2) Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3) The brightness can be adjustable to meet the need of changing environment
4) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5) Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

6) Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
10) Convenient installation and maintenance of display modules



Service:

Pre-sale service:
1. Reply enquiry in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual of control system software.



FAQ:

Q1: Can I have a sample order for led display?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 15 days, mass production time needs 3-5 weeks depends on the quantities.

Q3. Is it OK to print my logo on led display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q5: Can I talk with English, Spanish, Portuguese, French, German, etc?
A: Yes, we have experienced staffs could answer your inquiry in different languages.

Q6: Do you accept OEM, ODM service?
A: Yes.

Q7: Can we become your distributor?
A: Yes, welcome . We offer special discount , as well as protection policy to you.
