• 1000x1000mm Transparent LED Display Panel P3.91-7.8 Advertising Outdoor Glass
  • 1000x1000mm Transparent LED Display Panel P3.91-7.8 Advertising Outdoor Glass
1000x1000mm Transparent LED Display Panel P3.91-7.8 Advertising Outdoor Glass

1000x1000mm Transparent LED Display Panel P3.91-7.8 Advertising Outdoor Glass

Product Details:

Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P3.91-7.8

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: usd600-1500/㎡
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 500㎡/week
Get Best Price Contact Now

Detail Information

Application: Indoor Color: Full Color
Brightness: 5000nits Input Voltage (AC: 110V - 240V
Life Span: 100000 Hrs Transparency: 70%
High Light:

1000mm Transparent LED Display Panel

,

Transparent LED Display Panel P3.91mm

,

Advertising transparent led display

Product Description

P3.91-7.8 1000*1000mm Advertising Outdoor Glass Transparent LED Display Panel



Features:

★ The P3.91 series adopts 2020GGB magic lantern beads, and is composed of unit modules ;
★ Any size LED display can be formed by splicing modules;
★ The light transmittance exceeds 80%, which does not affect indoor wind collection;
★ Wide voltage input power supply: AC90-264V 50/60Hz;
★ Support multiple file formats: display text, image, video and other screens;
★ Support mobile phone, computer file WIFI, 5G remote transmission;
★ The whole machine provides a 3-year quality guarantee;
★ Widely used in glass curtain wall, quantitative lighting, advertising media, space decoration, partition decoration, home
design, commercial display, functional signage;



Description:

Glass LED displays are a dynamic way to market your brand to the public. It is an effective way to draw customers’ attention to your shop, hotel, restaurant, jewelry store, or any other business. Moreover, it gives you creative freedom and costs much less than other forms of advertising. You can change your display every other day without having to incur expensive costs.

Additionally, LED displays are more interactive than run-of-the-mill advertising. Having animated image transitions on the display, for instance, is more refreshing than just a still image. More so given the crisp colorful images transmitted by Ledmanner transparent LED displays.



Specification:

Item



Parameters

Parameters

Parameters

Model

P3.91-7.81

P3.91-7.81

P3.91-7.81

Pixel pitch

Horizonal 3.9mm

Horizonal 3.9mm

Horizonal 3.9mm

Pixel pitch

Vertical 7.8mm

Vertical 7.8mm

Vertical 7.8mm

Scan method

1/16 scan,constant current

1/16 scan,constant current

1/16 scan,constant current

Cabinet size(L*H*T)

500*1000*93mm

500*1000*93mm

500*1000*93mm

Cabinet resolution

128*128dots

128*128dots

128*128dots

Pixel density

32768 dots/m2

32768 dots/m2

32768 dots/m2

Cabinet material

Aluminum material

Aluminum material

Aluminum material

Brightness

1500cd/㎡

2500cd/㎡

5000cd/㎡

Viewing angle

160°/140°

160°/140°

160°/140°

best viewing distance

≥4M

≥4M

≥4M

Gray scale

16bit

16bit

16bit

Refresh rate

≥1920Hz

≥1920Hz

≥1920Hz

Input voltage

AC100-240V

AC100-240V

AC100-240V

Max power

400W/㎡~600W/㎡

400W/㎡~600W/㎡

400W/㎡~600W/㎡

Avg power

150W/㎡~240W/㎡

150W/㎡~240W/㎡

150W/㎡~240W/㎡

Screen weight

7.5kg

7.5kg

7.5kg

MBTF

>10,000 Hrs

>10,000 Hrs

>10,000 Hrs

Life span

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

IP protection level

IP65

IP65

IP65

Transparent ratio

≥85%

≥85%

≥85%

Temperature(Operating/Storge )

-30°C~60°C

-30°C~60°C

-30°C~60°C

-40°C~80°C

-40°C~80°C

-40°C~80°C

Humidity(Operating/Storge)

10%~98%

10%~98%

10%~98%

10%~98%

10%~98%

10%~98%

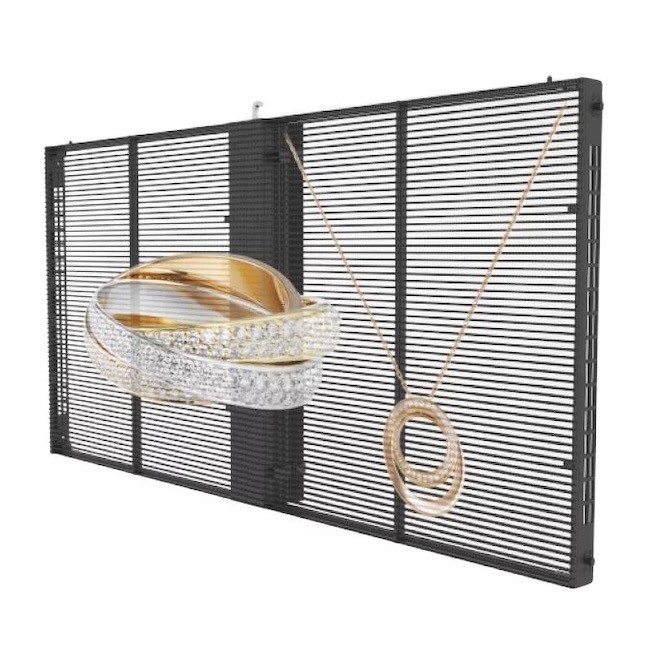

Product Picture:

1000x1000mm Transparent LED Display Panel P3.91-7.8 Advertising Outdoor Glass 0

1000x1000mm Transparent LED Display Panel P3.91-7.8 Advertising Outdoor Glass 1



Advantage:

1. Well-trained, experienced staffs answer all your questions.
2. Give Special discount according to the order quantity.
3. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.



Function introduction:



★ Data transmission.
★ According to the serial port or industrial Ethernet interface data, read the corresponding text, picture, video, and display the corresponding content.

★ Data update.
★ Modify the display text, picture, video function through the serial port or industrial Ethernet interface.
★ Set parameters.
★ The function of setting the display parameters through the serial port or industrial Ethernet interface; including: grayscale,color, brightness, display speed, screen split and merge, etc.

★ Storage function
★ Store display information, communication information, fault information, etc.
★ Read function
★ Read video transmission progress, store device content, send device data information, etc.
★ Power-on self-check function.





After-sales service:

1. Two year warranty , Lifetime free maintenance.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.



FAQ:

Q1: How could I buy the products I need if there is no price in the website?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.


Q2: How long could I get reply of my inquiry?
A: You will get a reply within 24 hours.

Q3: What kind of warranty do you offer?
A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty.

Q4: How is the after sales service?
A: We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.

Q5: What kind of payment methods do you have as a manufacturer?
A: We take T/T , Western union, L/C and cash as payment term.
