Semi Outdoor Flexible Transparent LED Display Panel Glass Indoor Window

Semi Outdoor Flexible Transparent LED Display Panel Glass Indoor Window

Product Details:

Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P3.91-7.8

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: usd600-1500/㎡
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 500㎡/week
Get Best Price Contact Now

Detail Information

Application: Indoor/outdoor LED Type: SMD1921
Frame Material: Steel Or Aluminum Display Function: Video
Screen Transparency: >70% Verification: CE EMC LVD ROHS
High Light:

Flexible Transparent LED Display Panel

,

Semi outdoor Transparent LED Display Panel

,

Window transparent flexible led display

Product Description

Glass Flexible Indoor Semioutdoor Window Transparent LED Display Panel



Features:

1. Frame made of aluminum alloy, Extremely light weight: screen+steel structure<20kgs/sqm. Traditional outdoor cabinets over 100-120kgs/sqm.
2. Semi-transparent , Penetration rate 50%, Other Similar products <30% .Traditional outdoor cabintets completely closed (need air condition).
3. Multiple mounting modes: Wall fixing , rental ,front of windows installation and so on.
4. Easy installation for temporary application. Easy disassembly for maintenance.(Front maintenance).
5. Good color mixing with DIP570 leds, wide viewing angle H120 / V 60 Degree.
6. Static driving mode, High reflesh frequency to ensure no flicker and image distortion.



Description:

1) Strong centralized control technology, Equipment is simple and complete
2) Software environment
3) Multimedia structure, screen directly controlled by the computer
4) Real-time 256 degree gray, reflect the true colors
5) Brightness adjustment
6) Support for multiple display mode
7) Contrast, brightness adjustment of the entire screen ion of Tube Core
8) The size and style can be customized as the requirements of customers



Specification:

Transparent LED screen
Model NO. P3.9 P5.2 P7.8 P10
Pixel Pitch 3.9X7.8mm 5.2X7.8mm 7.8X7.8mm 10.4X10.4mm
Screen transparency >70% >70% >70% >70%
LED type SMD 1921/2020 SMD 1921/2020 SMD 1921/2020 SMD 1921/2020
Pixel configuration 1R1PG1PB 1R1PG1PB 1R1G1B 1R1G1B
Module size (W*H) 1000*500mm 1000*500mm 1000*500mm 1000*500mm
Cabinet weight <14kg/m² <14kg/m² <14kg/m² <14kg/m²
Electrical source mute mute mute mute
Rresolution (W*H) 1920*1080mm 1920*1080mm 1920*1080mm 1920*1080mm
Density 32256dots/m² 24576dots/m² 16384dots/m² 9216dots/m²
Best viewing angle 178°/ 178° 178°/ 178° 178°/ 178° 178°/ 178°
Brightness 1000-6000cd/m² 1000-6000cd/m² 1000-6000cd/m² 1000-6000cd/m²
Working voltage AC:380V±10% AC:380V±10% AC:380V±10% AC:380V±10%
50Hz 50Hz 50Hz 50Hz
Maximum power 400-800W/ m² 400-800W/ m² 400-800W/ m² 400-800W/ m²
Average power consumption 180W/m² 180W/m² 180W/m² 180W/m²
~240W / m² ~240W / m² ~240W / m² ~240W / m²





Product Picture:

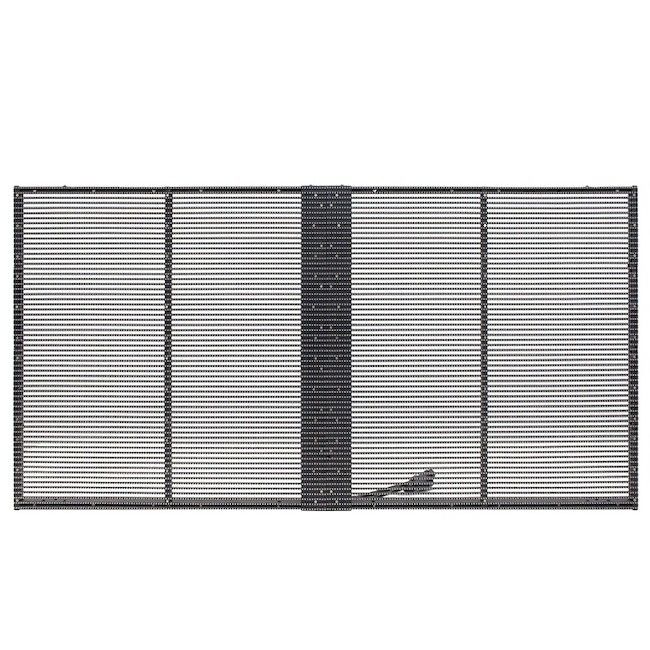

Semi Outdoor Flexible Transparent LED Display Panel Glass Indoor Window 0

Semi Outdoor Flexible Transparent LED Display Panel Glass Indoor Window 1



Advantage:

Seamless connection;

Special design for the mask to realize higher contrast (5000:1) and larger viewing angle (160°);

Signal backup and power backup;

Brightness and chromaticity calibration;

Mixed use of cabinets from different batches;

True color reproduction;

Anti-ghost;

High gray scale (16bit) and high refresh rate (2880Hz);

Lower power consumption with high PFC power supply, the drive current of each LED lamp only less than 30mA;

Customizable design.

Supporting synchronous control /3G wireless control/Asynchronous control



After-sales service:

1--.We will response within 24 hours when receive your inquiry.
2--.Led screen products have 2 years warranty.
3--.After sales service: Any installation and debugging problem will get the best supports from us.
4--.Our products are pushing to all over the world, mainly in Russian, Iran, American, Turkey, Australia,Brazil, indonesia, Germany and so on.



Installation:
1.We can assist the training and technical support for the customer in the factory, if the customer requires so.
2.We could send our engineer to guide the installation for you. But the relevant cost should be paid by your
esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course,
if you need.



FAQ:



Q1: What`s your payment term? How long it takes to delivery?

A: We accept T/T and L/C, For both T/T and L/C,Our average Production time is 16 days, after receiving the deposit.


Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q3: What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question . We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts. Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q4: What's the control system?
A: We use Linsn, Nova ,Carlette control system.

Q5: What's the warranty of your LED Display Screen ?
A: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
