P1.5 Indoor Video Wall Display

P1.5 Indoor Video Wall Display

Product Details:

Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P1.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: usd 400-2200/㎡
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Get Best Price Contact Now

Detail Information

Application: Indoor And Outdoor Brightness: 800cd/sqm
Pixel Pitch: 1.5mm LED Type: SMD1010
Place Of Origin: Guangdong, China (Mainland) Lifespan: ≥100,000 H
High Light:

P1.5 Indoor Video Wall Display

,

1.5mm indoor video wall display

,

SMD1010 indoor led screen panel

Product Description

P1.5 Die Casting Fixed Led Panel Video Wall Indoor Full Color LED Screen



Quick Details:

Seamless connection;

Signal backup and power backup;

Brightness and chromaticity calibration;

Mixed use of cabinets from different batches;

True color reproduction;

Anti-ghost;

High gray scale (16bit) and high refresh rate (1920Hz);

Lower power consumption with high PFC power supply, the drive current of each LED lamp only less than 30mA;

Customizable design.



Feature :

1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:120 inhorizonal and 120 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos
5. regular shape and special shape(such as curve,round) can be designed



Specification:

Model
P1.2
P1.5
P1.6
P1.8
P2
Pixel Pitch(mm)
1.25
1.53
1.66
1.86
2
Pixel Matrix Per Sq.m
422500
422500
360000
288906
250000
Pixel Configuration
SMD1212
SMD1212
SMD1212
SMD1515
SMD1515
Cabinet Resolution
415x312
415x312
384x288
344x258
320x240
Power Con.(W/㎡) (Max / Avg)
600W/200W
600W/200W
600W/200W
580W/180W
580W/180W
Refresh Rate (HZ)
≥3840
≥3840
≥3840
≥3840
≥3840
Brightness (cd/㎡)
500-900
Module Dimension
320x160mm / 1.05x0.53ft
Cabinet Dimension
640x480mm / 2.10x1.57ft
Cabinet Material
Die Casting Aluminum
Cabinet Weight
7KG
Service Access
Front
Grey Scale (bit)
14
Viewing Angle (H/V)
140°/140°
IP Rate
IP45
Operation Temperature
-20℃ ~ +80°℃
Input Voltage (AC)
110V / 220V

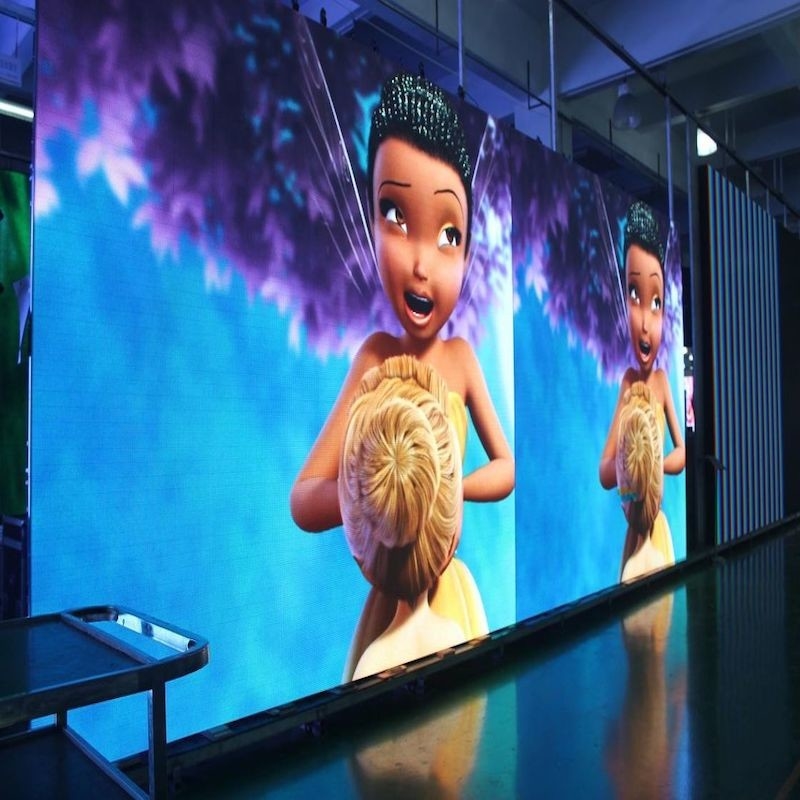

Product Image:

P1.5 Indoor Video Wall Display 0

P1.5 Indoor Video Wall Display 1



Advantage:

----- Professional LED screens& LED Displays Manufacturer;

----- Highly resolution, good image effect, easy to install and convenient to carry;

----- Resonable price, good uniformity, stable capability and high brightness;

----- Aluminum alloy material both for fixed installation and hanging rental;

----- Korea remote controller, easy write-on and wipe-off;

----- Brand chipset and driver for LED screens: Epistar/  CHIP and Meanwell DRIVER;



Description:

1) With good lightening accordance and no mosaic.

2) Can play different formats of image files, flash, video signal from TV, video and other equipments.

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.

4) High brightness, and can be adjustable, meets the needs of customer's requirements.



Service:

Warranty:

We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.

Technology Training:

1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.

2. We will send our engineers to your country by negotiation.

Documents and Certification:

1. We provide the operation manual, software, test report and so on.

2. We can also provide all kinds of certification such as CE, UL and so on.



Application:

Indoor led screen is widely used in stadium, shopping mall, station, office and hotel for advertising with characteristics of high brightness, large viewing angle, high safety, long life span, light weight, fast installation and easy maintenance etc. Indoor led display can be mainly divided into mounted screen and pillared screen..



Package:

1. Packaging:

We provide free plywood wooden box packaging and accoding to client's need.But in any case, we will both ensure the use of appropriate packaging to protect the safety of the goods.
2. Transportation:
Customers can freely choose the shipping way, by air, by sea or by train. We have professional freight forwarders, on the transportation we will not earn customers one penny of profit. Of course customers also could use your own freight forwarders, we will to fully cooperate with you.



FAQ:

1: Are you the manufacturer or trading company? and where is your factory?
A: we are professional manufacturer devote in producing Led outdoor, Led indoor display, rental display, stadium screen,advertising screen and stage screen etc. You are warmly welcome to visit our factory to learn the technical and maintenance skillsand everything you need in our factory.

Q2: May be we will need some samples, what is the lead time of samples and lead time of order?
A2: We will arrange your sample of the charges within 1-2 days and arrange your order within 5-12 days after receiving your salary.

Q3: How could us arrange order?

A: pls send your inquiry to us--click the "send" in below, then let us confirm all details, you can click "start order" in above,or we send you order link for your payment.

Q4: Which payment method does your company accept?
A: We support T/T or Trade Assurance. For more payment methods, please contact our customer service.

Q5: If have quality problems, how do you solve them?
A: Please provide relevant videos and photos within one month of receipt of the shipment. We will verify it at first. If it is really quality problem, we will work with the engineer to assist you in solving the problem. If we cannot solve it, we will give you a refund or resend you new one for free, but we will not bear the freight.
