1.6mm Mini LED Display Panel

Product Details

Place of Origin: China

Brand Name: ledmanner

Certification: CE

Model Number: P1.6

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: USD1500-5500/㎡

Packaging Details: wooden case

Delivery Time: 20days

Payment Terms: T/T

Supply Ability: 500㎡/week

Get Best Price
Product Details
High Light:

1.6mm Mini LED Display Panel


Indoor Mini LED Display Panel


337.5mm small led display

Pixel Pitch(mm):
Size Of Panel:
Panel Structure:
Die-casting Aluminum
Panel Weight(kg):
Pixel Pitch(mm):
Size Of Panel:
Panel Structure:
Die-casting Aluminum
Panel Weight(kg):
Product Description

Stage Background Indoor Big Small Pitch P1.6mm Mini LED Display Panel


Quick Details:

● Easy maintaince and service(Mini LED Display Panel)

● Ledmanner MS-Plus with P1.2 P1.5 P1.6 P1.8

● Perfect screen flatness

● Support fully front service

● 300mm*168.75mm size module

● 600mm*337.5mm size cabinet

● Different modules use same magnetic cabinet



1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.





Pixel pitch(mm) 1.667
Configuration SMD1010
Module dimension(mm) (W)300x(H)168.75
Module weight(kg) 0.4
Panel dimension(mm) (W)600x(H)337.5x(T)66
Panel weight(kg) 4.6
Pixel density(dots/㎡) 360000
Flatness error(mm) ≤0.1
Viewing angle(°) 160/160(Horizontal/Vertical)
Brightness(cd/㎡) ≥800
Color temperature(K) 3200~9300 (Adjustable)
Contrast 5000:1
Repetition frequency(Hz) 50/60
Refresh frequency(Hz) ≥3840/1920
Gray scale(bit) 16
Ave. power(W/㎡) 340
Max power(W/㎡) 1000
Working temp./humidity -10~40℃/10%~80%RH
Storing temp./humidity -20~60℃/10%~85%RH
Panel structure Die-casting aluminum
Maintenance Rear/Back
Brightness/color correction Yes
Driving mode Constant current driver, 1/30 scanning
Power requirements AC90~264V, 47~63Hz
Signal Transmission Distance CAT cable:<100m;Single mode fiber:<10km
Installation type Fix
Life time(hrs) 50,000
Certificate CCC/TUV-CE/ETL, etc.


Product Picture:

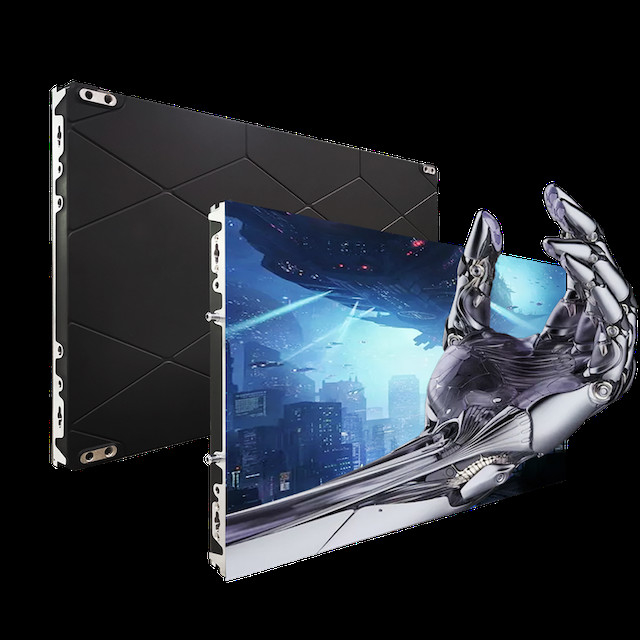

1.6mm Mini LED Display Panel 0

1.6mm Mini LED Display Panel 1



1. SMD3-in-1 technology are used for indoor LED display.

2. Wide view angle: 160 in horizonal and 160 in vertical

3. Special design and advanced SMT technology improves the heat dissipation

4. With high refresh rate controller, guarantee that no scan line when taking photos.

5. Slim and lightweight design.

6. Easy for assembling and connecting with fast lock and the connector added.

7. High color uniformity and clear image can bring you a vivid audio visual effect.



1. Your inquiry related to our products or price will be replied in 24hrs as soon as possible.
2. Protection of your sales information,ideas of design and all your private information
3. Top quality+ reliable price+responsible after service=successful


Technology Training
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.

Documents and Certification
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.

CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.


Application field:

Advertising LED displays, Stadium perimeter LED screen, shopping mall LED billboard for logo showing , bank & stock exchange LED message signs for rates showing , train & bus station , airport , telecommunication LED video wall system forinformation showing and instruction, Stage performances ect.



Q1. What will you do if we have problems related to installation, configuration and use?

A: Our after-sale service team will solve all the problems, until the screen can work normally.


5 Q:What is the frame update frequency?

A:50HZ / 60HZ


6 Q:What is the refresh rate?

A:1920HZ and 3840HZ, depends on what driver IC used


7 Q:What is your current lead time?

A: Usually no more than 20 days; and some products are in stock for quick delivery.


8 Q: What' s your warranty of your products?

A: Usually 2 years, counted from the date goods reaching clients.
