Product Details
Place of Origin: China
Brand Name: Ledmanner
Certification: CE FCC ROHS
Model Number: P6
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: USD300-1000/㎡
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Outdoor |
Type: |
P6 |
Pixel Pitch: |
6mm |
Canbinet Size: |
960*960mm |
Brightness: |
5500nits |
Refresh Rate: |
1920Hz-3840Hz |
Application: |
Outdoor |
Type: |
P6 |
Pixel Pitch: |
6mm |
Canbinet Size: |
960*960mm |
Brightness: |
5500nits |
Refresh Rate: |
1920Hz-3840Hz |
Energy Saving Product P6.67 P8 P10 Outdoor SMD Commercial LED Display Screen
Quick Detail:
● High cost performance
● Special waterproof design : IP67
● Perfect screen flatness
● Support back service
● 320mm*100mm size module
● Standard 960mm*960mm size cabinet
● Different modules use same cabinet
● Iron cabinet material, can be customized
Features:
1) Taiwan Epistar LED chip
2) A-class LED display module frame and mask, which could endual harsh weather.
3) Fiberglass green enviromental PCB with 18mil thickness copper plating .
4) UV-protected and anti-rust and powder coated LED cabinet and baked at least 4 hours.
5) quick and easy assembly and disassembly.
6) Easy learning universal operating software for synchronous or asynchronous control.
7) Two years warranty.
Specification:
TECHNICAL PARAMETER |
|||||||
Type |
P3 |
P3.8 |
P4 |
P5 |
P6 |
P8 |
P10 |
Pitch(mm) |
3mm |
3.8mm |
4mm |
5mm |
6mm |
8mm |
10mm |
Pixel Density(dots/㎡) |
111111 |
67816 |
62500 |
40000 |
27778 |
15625 |
10000 |
Module Size(mm) |
192*192 |
192*192 |
320*160 |
320*160 |
192*192 |
320*160 |
320*160 |
Module Resolution(dots) |
64*64 |
50*50 |
80*40 |
64*42 |
32*32 |
40*20 |
32*16 |
Cabinet Size(mm) |
960mm*960mm / 768mm*768mm |
||||||
Cabinet material |
Die-casting Aluminium |
||||||
Cabinet weight(kg) |
16-30KG |
||||||
Scan Mode |
1/16 |
1/13 |
1/10 |
1/8 |
1/8 |
1/5 |
1/2 |
Brightness(cd/㎡) |
3500 |
6500 |
6500 |
6500 |
7000 |
7000 |
7000 |
High contrast |
1:4000 |
||||||
Gray Scale(Bit) |
14bits |
||||||
Driving Mode |
Constant Current |
||||||
IP Rating |
IP65 |
||||||
Power Consumption Max/Ave(w) |
700/220 |
700/220 |
700/220 |
600/180 |
600/180 |
500/160 |
500/160 |

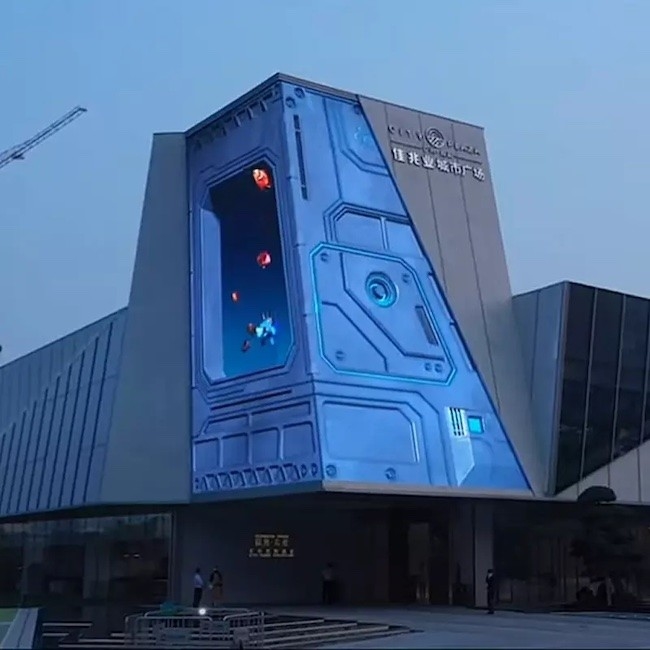

Product image:
Description:
Energy saving IC supporting The top IC manufacturer, strategic cooperator of Hongwei, designed an special energy saving IC for the solution, which can cut down more than 30% power consumption to common products.
Low power voltage & High brightness lamps The factory has made thousands of experiments to test different power voltage and LED lamps to reach the balance of energy and brightness. Under the low power voltage and high brightness lamps designing, it can shine the same brightness with less power consumption, keeping the same cost.
Removing some power dissipating components To reduce some power dissipating components to cut down power consumption, fans and some resistors are removed from the cabinet.
Brightness automatic adjustment The brightness automatic adjustor can control the screen to different brightness according to the environment. When the screen faces to the sun, it will turn up the brightness to make sure that people can watch it clearly; but it will reduce the brightness to protect the environment at night, which can save huge energy to the common product.
Exclusive circuit design The exclusive circuit design under being applied for patent can save energy for the internal part. mannled energy saving solutions have been updated for many years, and customers from different countries are benefit from them. The energy saving function helps customers save huge investment in electricity, and it shortens the period to earn the investment for advertisement customers. However, the most important thing is that Hongwei will always on the road to design energy saving products to protect the environment!
Advantage:
1. High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
Warranty:
1. We guarantee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training
of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you until it recovers well by remote control!
Service:
1) Guidance service: We can guide on line if customers have questions about the installation and usage. For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, our company will be responsible for the equipments.If there is any failure in product quality, our company will maintain and change the components for free. After Maintenance period, only charge the material costs fees free of manual work fees.
Installation:
1. We can assist the training and technical support for the customer in the factory, if the customer
require so.
2. We could send our engineer to guide the installation to you. But the relevant cost should be paid
by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course,
if you need.
Application and function
Suit for advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
1) Video display for advertisement
2) Live broadcast for news, sport, concert…
3) Stage background
4) Information display for time, schedule, text
5) Dynamic display for logo, text, video
FAQ:
1. Do I need air-conditioner?
YES, if your local temperature is very high . The quantity depends on your dimension.
2. How to install led display?
We will provide drawings of steel structure or Teamviewer to help you install. If you need our engineers to help you, we can sent them to your installation place. But all the fees including air tickets(back and forth), transportation, living and salary(USD80/per day/per person) need to be paid by you.
3. How to ship?
It's suggested by sea because the cost is much cheaper than by air.
4. Can I do wireless?
Yes, we can provide a set of control system to help you realize that. But I suggest you use computers, especially for your large size, because using computers can bring much better visual effect and better for outdoor advertising .
5. If some issues happen what can I do?
We will do Teamviewer to help you fix all issues.
6. Can you provide the frame for me?
Yes, we can. But we suggest you buy it at local. Firstly, it is difficult to delivery. Secondly, the freight cost will be higher. We can provide detailed drawing of installation to guide you. So no worries about the installation.
