• Commercial Curved TV Flexible LED Panel Video Screen 320x160mm
  • Commercial Curved TV Flexible LED Panel Video Screen 320x160mm
Commercial Curved TV Flexible LED Panel Video Screen 320x160mm

Commercial Curved TV Flexible LED Panel Video Screen 320x160mm

Product Details:

Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P2.5

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: USD500-2000/㎡
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 200㎡/week
Get Best Price Contact Now

Detail Information

Application: Indoor Color: Full Color
Panel Size: 320*160mm Pixel Pitch: 2.5mm
Supplier Type: Original Manufacturer, ODM, OEM Place Of Origin: Shenzhen, China
High Light:

TV flexible led panel video screen

,

flexible led panel video screen 320mm

,

160mm flexible led screen wall

Product Description

DJ Booth LED Flexible Curved Video TV Commercial LED Display Screen



Quick Detail:

1. Flexible and bendable

The flexible chassis and soft cover design enable user to bend it freely ,so it can be assembled at any uneven or irregular locations.

2. Super thin and light
Flexible LED Sign is one of the thinnest &ligntest LED signs in the world with special materials and
advanced technology .Every module is only 9mm thick and has a weight of 380g.

3. Easy to splice, install and maintain

Modularization design and no other connected cables make the installation so easy.User just mounts iron sheet or magnetic product on the surface in the first,then stick the Flexible LED sign on the surface .

4. Low power consuption

The maximal power consumption of a module is less than 15W only.

5. Wide application

Can be used in so many fields and occasions ,especially in all kinds of irregular buildings .For example hotel advertising,stage renting,television,shopping malls,big markets,outdoor stadiums,concerts , fairground ,sightseeing districts, etc...



Description:

High definition and could be adjusted, so it can meet the request of the customers according the application environments.

Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.

To picture, video and character, have clear, exquisite and real display effects.Can repair each led lamp, so the cost of maintenance is lower, and easy to repair.



Specification:

Model

P1.25

P1.579

P1.667

P1.875

P2

P2.5

P3

P4

Pixel Pitch(mm)

1.25

1.579

1.667

1.875

2

2.5

3

4

Pixel Matrix Per Sq.m

640000

401111

360000

284444

250000

160000

111111

62500

Pixel Configuration

SMD1010

SMD1010 / SMD1212

SMD1010 / SMD1212

SMD1212 / SMD1515

SMD1515

SMD1515

SMD1515 / SMD2121

SMD2121

Brightness (nits)

≥600

≥650

≥700

≥750

≥750

≥750

≥900

≥850

Scan

1/48

1/38

1/36

1/32

1/30

1/24

1/20

1/15

Module Weight

0.215kg

0.203kg

0.195kg

0.216kg

0.205kg

0.175kg

0.175kg

0.17kg

Power Con. (Max / Avg)

1000 / 340 w/sq.m

1000 / 340 w/sq.m

800 / 270 w/sq.m

800 / 270 w/sq.m

800 / 270 w/sq.m

800 / 270 w/sq.m

800 / 270 w/sq.m

800 / 270 w/sq.m

Refresh Rate (HZ)

3840

3840

3840

≥2880

≥2880

≥1920

≥1920

≥1920

Module Dimension

240x120mm / 0.79x0.39ft/320*160MM

Module Material

Silicon Rubber Soft Bracket

Service Access

Front

Grey Scale (bit)

14

Viewing Angle (H/V)

140 / 140

IP Rate

IP45

Operation Temperature

-10° ~ 50°

Input Voltage (AC)

100V or 240V



Product Image:

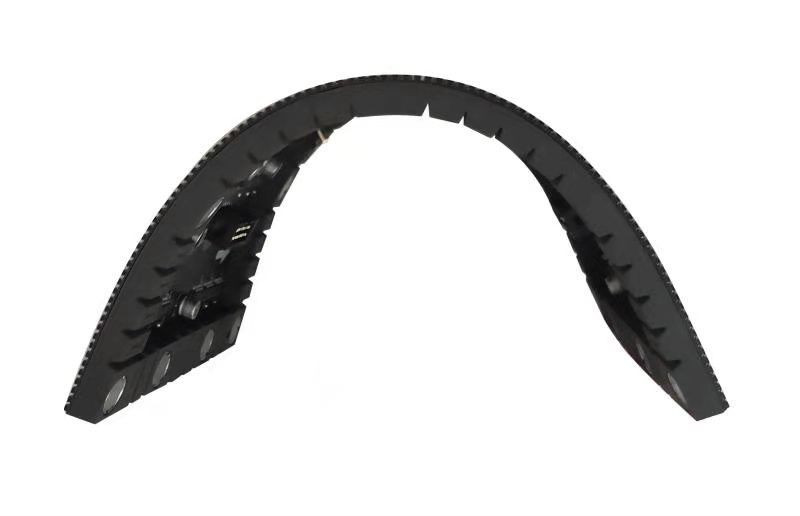

Commercial Curved TV Flexible LED Panel Video Screen 320x160mm 0

Commercial Curved TV Flexible LED Panel Video Screen 320x160mm 1



Advantage:

1. Brightness: >1600 cd/m2. the pixel can be adjusted point by point to reach the white balance.

2. Special design, the screen can be curved to any shape.

3. Without steel frame, the screen is very light, it is good for building body. only using a hanging bar, it can be installed easily and fast



Features:

1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2. Thin cabinet:the thickness is only 6.5 CM, the space of the screen is small , and the entire screen will be more beautiful.
3. Flat screen:smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.
4. Quick dismounting:adopt fast locking structure connected, firm, quick, beautiful.



Our Service:

1) Reply your inquiry in 24 working hours.

2) Experienced staffs answer all your query in fluent English,Spanish,French,German etc

3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

4) Customized design is available,OEM & ODM are welcomed.

5) Warranty: 2 years, a little investment for longer warranty time.

6) Special discount and protection of sales area provided to our distributor.

7) Warmly welcome your visit in our company if available.



Trade Terms:

1. Packing: Anti-shaking wooden cabinet /Air flight case/carton.

2. Shipping port: Shenzhen. China.

3. Shipping freights are quoted according to your requests.

4. Delivery time:5-15 working days.

5. 2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.



FAQ:

Q1: What is the warranty of the panels?
The warranty is 1 or 2 years parts on all of our products. Additional warranty terms can be negotiated during the sales process.



Q2: What is the fast delivery time?
The production can be controlled as fast as you need from 7 days to 25 days.



Q3: What is the payment terms?
30% deposit by TT, 70% balance before shipment.



Q4: How can I install the led display?
Mannled has created ways to mount all of our products to trussing, but we understand this isn't always the right solution for permanent install. Our design team can help create custom frames and mounting specific to your installation
