4K Mini Led Display Panel

4K Mini Led Display Panel

4K Mini Led Display Panel

P1.25 mini led display panel

Full Color small led display screen

Brand Name:

ledmanner

Certification:

CE

Model Number:

P1.25

Contact Us

Request A Quote
Product Details
Place Of Origin:
Guangdong, China
Application:
Indoor
Color:
Full Color
Cabinet Material:
Die-casting Aluminum
Cabinet Weight:
6.9kg
Refresh Rate (Hz):
≥3840
Payment & Shipping Terms
Minimum Order Quantity
1sqm
Price
USD1500-5500/㎡
Packaging Details
wooden case
Delivery Time
20days
Payment Terms
T/T
Supply Ability
500㎡/week
Product Description

4K High Definition Indoor TV P1.25 Full Color Mini LED Display Panel



Quick Details:

● Easy maintaince and service(Mini LED Display Panel)

● Ledmanner MS-Plus with P1.2 P1.5 P1.6 P1.8

● Perfect screen flatness

● Support fully front service

● 320mm*160mm size module

● 640mm*480mm size cabinet

● Different modules use same magnetic cabinet



Description:

Ledmanner MS-Plus Series Small pitch Cabinet, with magnetic pre-maintenance, ultra-light, ultra-thin design, weight only 4.3KG, disassembly and maintenance only 20 seconds, IP level 30, high brightness, high contrast, 160 ° large viewing angle, Full front service indoor project solution, Mini LED Display Panel cost and function both perfect option.



Specification:

Name MS-P1.25 LED display module
Plate Size 320mm*160mm.
Resolution 256*128
Pixels pitch 1.25mm.
Light color 1R 1G 1B
LED lamp SMD1010
Brightness ≥500cd/sqm
Drive mode 1/32 scan,constant current
Pixel density 640000dots/sqm
Refresh rate ≥3840HZ
Failed Rate <0.0001
Best viewing distance ≥1.25m
MTBF 10000 hrs
Work life 100000hrs
System operating platforms WIN7WINXPWIN2000 etc.
Data communication RF/S-video/RGB/RGBHV/YUV/YC/COMPOSITION etc.
Control system PCTV card+DVI graphic card+control
Control mode Synchronous/Asynchronous
Max power consumption ≤488.3W/sqm
Maximum Current 4.7A±0.3A
Input Voltage(DC) 4.8-5.5v
Operating Environment Temperature -20℃~+50℃;Humidity, 10%~90%RH.
Working Voltage AC110V/220V ±10%

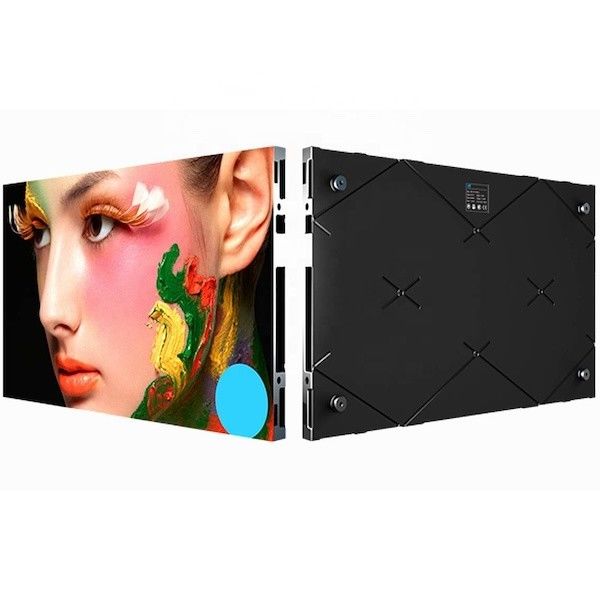

Product Picture:

4K Mini Led Display Panel 0

4K Mini Led Display Panel 1



Product Advantage :

1 The weight of the box is 40% lighter than the traditional iron box, which saves a lot of cost
2 Anti-knockdesigntoavoiddamagetothemodule,reducemaintenanceandimproveworkefficiency
3 Maintainthesuctioncuptoolbeforeuse,suckthemodule(theironplateis installedonthebackofthemodule),easytodisassembleandassemble
4 Highbrightness,highcontrast



FAQ:



Q: Are you trading company or manufacturer ?

A: We are led display manufacturer of Mini LED Display Panel.



Q: What is your terms of delivery?

A: EXW, FOB, CFR, CIF.



Q: How about your delivery time?

A: Delivery time is 30-45days for repeat orders.Have a Stock for hot-seller products.The specific delivery time depends on the items and the quantity of your order.



Q: Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
