Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE ROHS FCC
Model Number: LM-F3.91
Payment & Shipping Terms
Minimum Order Quantity: 1 sqm
Price: usd 600-2200/㎡
Packaging Details: wooden case or flight case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Indoor |
Product Name: |
Floor LED Display Screen |
Pixel Pitch: |
3.91mm |
Module Size: |
250x250mm |
LED Chip: |
SMD2121 |
Life Span: |
100000hours |
Application: |
Indoor |
Product Name: |
Floor LED Display Screen |
Pixel Pitch: |
3.91mm |
Module Size: |
250x250mm |
LED Chip: |
SMD2121 |
Life Span: |
100000hours |
P3.91 SMD Indoor Wedding Studio Stage Interactive Floor LED Display Screen
Quick Details:
1. Kinglight or Nation Star LED lamp is used in led module, 48 hours' module aging test and 72 hours' led screen aging test before packing.
2. It adopts die-cast aluminum box, which is not easy to be deformed, anti-corrosion, fast heat dissipation and prolong product service life.
3. Lightweight and easy to transport and install.
4. Stainless steel lock connection, more stable, stable and safe.
Advantages:
1. Surface waterproof (can be washed directly with water), strong shock resistance, good slip resistance (the actor can jump on it at will, will not slip), the bearing capacity is large (the car can be directly crushed, the load point is 2 tons)
2. One-screen multi-purpose: It can be used as color brick when tiling; it can be used as stage main screen or color screen when stacking or lifting.
3. This product can be upgraded to a sensor screen through sensor or infrared technology to interact with the audience.
Specification:
Pixel pitch | P3.91 | ||
Module Parameters | Pixel pitch | 3.91mm | |
Pixel Density | 65536dots/m² | ||
LED type | SMD 2121 | ||
LED Configuration | 1R1G1B | ||
Module Resolution | 64dots*64dots | ||
Module Size | 250*250mm | ||
Drive Method | 1/16 | ||
Cabinet Parameters | Cabinet Resoltuion | 128dots*128dots | |
Cabinet Size | 500*500mm | ||
Cabinet Weight | 8KG | ||
Display Parameters | Optical | Brightness | 1500CD/m² |
Viewing angle | H/V 140/140 | ||
Best Viewing Distance | 4-40m | ||
Grey Scale | 14 Bit | ||
Power | Max power consumption | 650W/m² | |
Ave power consumption | 200W/m² | ||
Working Voltage | 220V / 110V |

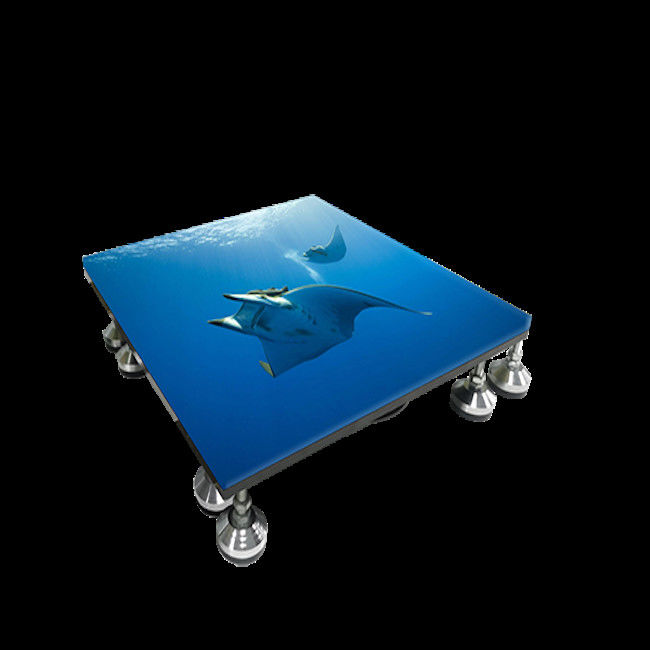

Product Image:
Features:
1. wide view angle:140 inhorizonal and 140 in vertical
2. special design and advanced SMT technology improves the heat dissipation
3. with high fresh rate controller, guarantee that no scan line when taking photos
4. regular shape and special shape(such as curve,round) can be designed
Wide application:
Enterprise reception ,appliances stores, sports stores, exhibition hall of fairs , cosmetics counters , shopping
mall. banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment.
FAQ:
Q: Are you trading company or manufacturer ?
