Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE ROHS FCC
Model Number: P3.91
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: USD480-1880/㎡
Packaging Details: flight case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Indoor And Outdoor |
Supplier Type: |
Original Manufacturer, ODM, Retailer, OEM |
Pixel Pitch: |
3.91mm |
Media Available: |
Datasheet, Photo |
Refresh Rate: |
3840hz |
Warranty: |
3 Years |
Application: |
Indoor And Outdoor |
Supplier Type: |
Original Manufacturer, ODM, Retailer, OEM |
Pixel Pitch: |
3.91mm |
Media Available: |
Datasheet, Photo |
Refresh Rate: |
3840hz |
Warranty: |
3 Years |
P3.91mm SMD Waterproof Type 500x500mm Rental LED Display Screen
Quick Details:
● Integrated power design saves time
● Double quick lock design
● More durable, single operation
● Quick installation and maintenance
● Modular design of power control
● No wire is needed to connect
● The cabinet is light and thin
● Unique module design, no left and right
● Private design of PCB
● Same HUB could useing all kinds of pixel
● Wide viewing angle, no reflection
Description:
1. The first level LED chip from Taiwan Epistar.
2. SMD 2121 lamp with black pearl light
3. With pure golden wire connection in LED.
4. Ag alloy solder paster
5. All new stainless steel screws when assembly.
6. 2 years warranty
7. Easy install for rental
Specification:
|
Item
|
P2.6
|
P2.976
|
P3.91
|
|
Pixel Pitch
|
2.6mm
|
2.976mm
|
3.91mm
|
|
Resolution
|
147928 pixels/sqm
|
112910 pixels/sqm
|
65536 pixels/sqm
|
|
Led Lamp
|
SMD1921
|
SMD1921
|
SMD1921
|
|
Module Size
|
250 x 250mm
|
250 x 250mm
|
250 x 250mm
|
|
Panel Size
|
500 x 500mm
|
500 x 500mm
|
500 x 500mm
|
|
Panel Weight
|
7 KG/pc
|
7 KG/pc
|
7 KG/pc
|
|
Drive Method
|
1/32 Scan
|
1/28 Scan
|
1/16 Scan
|
|
Brightness
|
4500 cd/sqm
|
4500 cd/sqm
|
5000 cd/sqm
|
|
Best Viewing Distance
|
2.5 - 25m
|
3 - 30m
|
4 - 40m
|
|
Best Viewing Angle
|
H140°; V140°
|
H140°; V140°
|
H140°; V140°
|
|
Working Voltage
|
AC110V/220V ±10％
|
AC110V/220V ±10％
|
AC110V/220V ±10％
|
|
Max Power Consumption
|
800W
|
800W
|
800W
|
|
Ave. Power Consumption
|
300W
|
300W
|
300W
|
|
Life Span
|
100,000 Hours
|
100,000 Hours
|
100,000 Hours
|

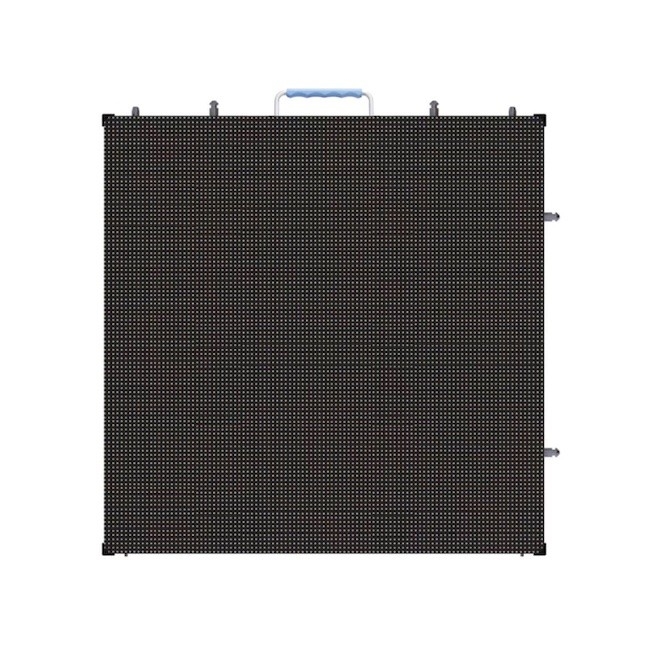

Product Image:
Features:
1. color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3, strict water proof testing by Ip65
4, according to environmental changes the brightness can be adjusted automatically for energy saving
5, special PVC kits are adopted to protect from corrosion according to coastal weather
6, according to environmental changes the brightness can be adjusted automatically for energy saving
7, auto power on/off, work unattended
Our Service:
1) Your inquiry related to our products or price will be replied in 24hrs
2) OEM&ODM,any your customized lightings we can help you to design and put into product
3) Distributoership are offered for your unique design and some our current models
4) Protection of your sales area,ideas of design and all your private information
5) Top Quality+Reasonable Price+Responsible After Service=Successful & Win
FAQ:
Q. How long time is needed to produce?
A. Our production time is 3-15 working days.
Q. How long does shipping take?
A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support?
A. We usually do FOB, CIF, DDU, DDP, EXW terms.
Q. This is the first time to import, I don’t know how to do.
A. We offer DDP door to door service, you just need to pay us, then wait to receive order.
