Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE ROHS FCC
Model Number: P3.91
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: USD480-1880/㎡
Packaging Details: flight case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Indoor And Outdoor |
Viewing Angle(°): |
160°/140°(Horizontal/Vertical) |
Pixel Pitch: |
3.91mm |
Cabinet Size: |
500*1000mm Or 500*500mm |
Panel Structure: |
Die-casting Aluminum |
Panel Weight(kg): |
7.8 |
Application: |
Indoor And Outdoor |
Viewing Angle(°): |
160°/140°(Horizontal/Vertical) |
Pixel Pitch: |
3.91mm |
Cabinet Size: |
500*1000mm Or 500*500mm |
Panel Structure: |
Die-casting Aluminum |
Panel Weight(kg): |
7.8 |
P3.91mm Die Casting Aluminum Stage Video Wall Rental LED Display Screen
Quick Details:
● Integrated power design saves time
● Double quick lock design
● More durable, single operation
● Quick installation and maintenance
● Modular design of power control
● No wire is needed to connect
● The cabinet is light and thin
● Unique module design, no left and right
● Private design of PCB
● Same HUB could useing all kinds of pixel
● Wide viewing angle, no reflection
Description:
1. Clear picture without flicker and distortion
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
3. Low consumption, stable performance, highly durable
4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually
5. 2 years warranty, easy to install & maintenance
6. CE, ROHS, FCC
Specification:
Pixel Pitch | P2.6 | P2.9 | P3.9 | P4.8 |
Panel Size | 500 x 500mm | |||
Panel Resolution | 192 x 192 pixels | 168 x 168 pixels | 128 x 128 pixels | 104 x 104 pixels |
LED Encapsulation | 3 in 1 smd2121 kn-light top A class | |||
Refresh Rate | 3840hz | |||
Brightness | 800-1500nits | |||
Power supply | Meanwell / G-energy/ Rong electronic | |||
Power consumption | 50W/panel on average, 150W/panel maximum | |||
Working Voltage | 100-240V | |||
Support Input | Composite, S-Video, Component, VGA, DVI | |||
Panel Weight | 7KG/15.18lbs | |||
Display gray scale | 14-16 bits | |||
Operating system | Windows, IOS | |||
Life span | 100000 hours under 50% brightness | |||
Warranty | 2-5 years |

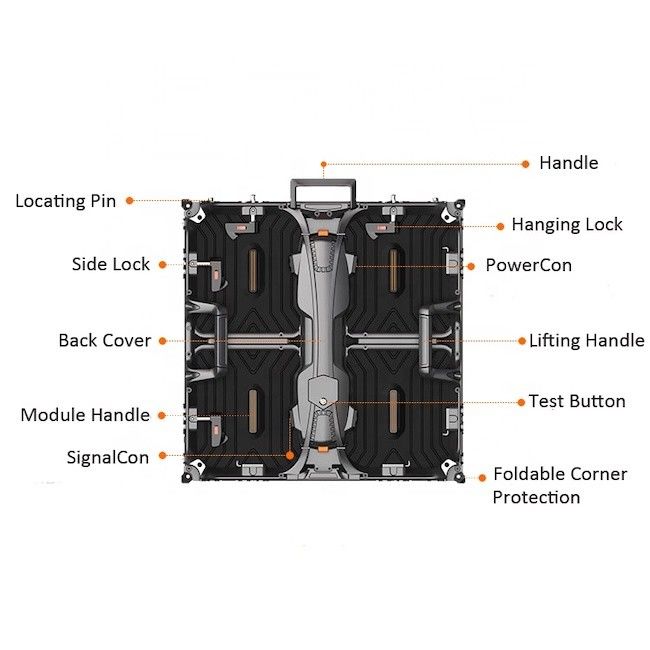

Product Image:
Features:
1. High density, High definition full color display , competitive price
2. High refresh rate & High gray level
3. Approving for Multimedia player
4. High Brightness High Contrast
Our Service:
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
CAD Drawing and Fixing:
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.
Additional service:
We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
FAQ:
Q. How long time is needed to produce?
Q. How long does shipping take?
