SMD1010 Mini LED Display Panel P1.25mm 4K High Fresh Rate

SMD1010 Mini LED Display Panel P1.25mm 4K High Fresh Rate

SMD1010 Mini LED Display Panel

Mini LED Display Panel P1.25mm

High Fresh mini led 4k

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Indoor HD
Size Of Panel:
2-3 Years
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
wooden case
Delivery Time
Payment Terms
Supply Ability
Product Description

High Definition P1.25mm 4K High Fresh Rate Mini LED Display Panel


Quick Details:

● Easy maintaince and service(Mini LED Display Panel)

● Ledmanner MS-Plus with P1.2 P1.5 P1.6 P1.8

● Perfect screen flatness

● Support fully front service

● 300mm*168.75mm size module

● 600mm*337.5mm size cabinet

● Different modules use same magnetic cabinet



1. Leading technology of high grey level and low brightness, contrast ratio 5000:1, processing depth 16bit, refresh rate 3840Hz

2. Wide color range, excellent color uniformity, no rainbow effect, broadcasting strong stability





Pixel pitch(mm) 1.25
Configuration SMD1010
Module dimension(mm) (W)320x(H)160
Module weight(kg) 0.4
Panel dimension(mm) (W)640x(H)480x(T)66
Panel weight(kg) 4.6
Pixel density(dots/㎡) 640000
Flatness error(mm) ≤0.1
Viewing angle(°) 160/160(Horizontal/Vertical)
Brightness(cd/㎡) ≥700
Color temperature(K) 3200~9300 (Adjustable)
Contrast 5000:1
Repetition frequency(Hz) 50/60
Refresh frequency(Hz) ≥3840
Gray scale(bit) 16
Ave. power(W/㎡) 240
Max power(W/㎡) 1000
Working temp./humidity -10~40℃/10%~80%RH
Storing temp./humidity -20~60℃/10%~85%RH
Panel structure Die-casting aluminum
Maintenance Rear
Brightness/color correction Yes
Driving mode Constant current driver, 1/30 scanning
Power requirements AC90~264V, 47~63Hz
Signal Transmission Distance CAT cable:<100m;Single mode fiber:<10km
Installation type Fix
Life time(hrs) 50,000
Certificate CCC/TUV-CE/ETL, etc.


Product Picture:

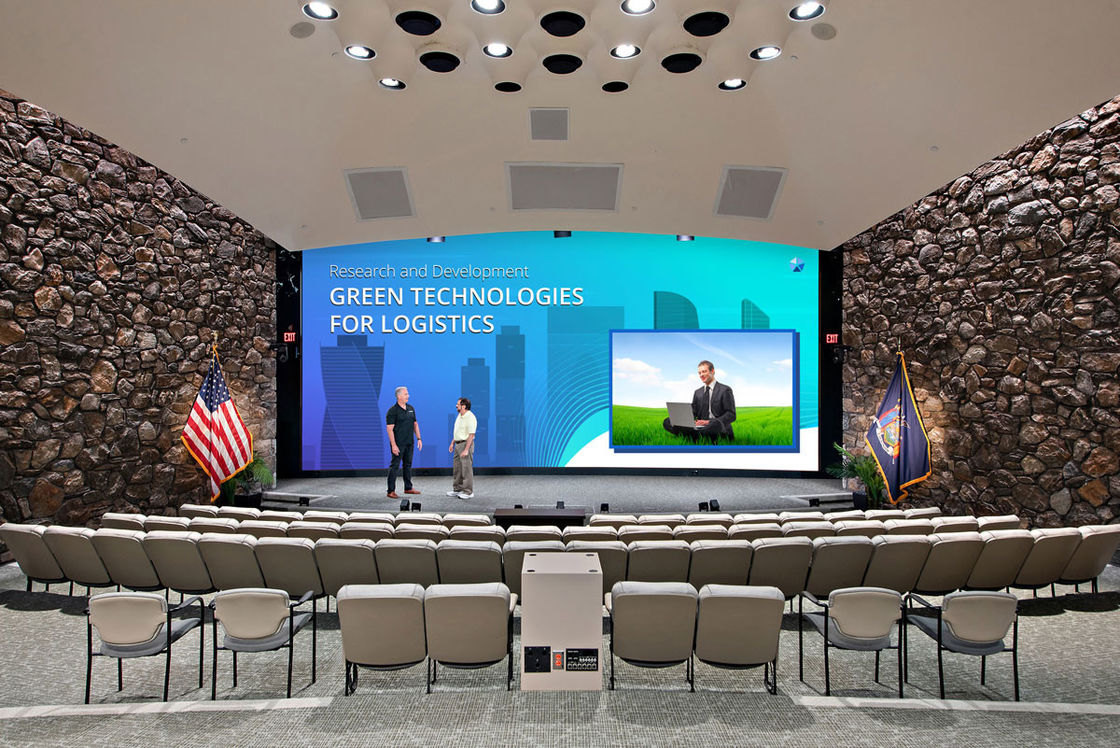

SMD1010 Mini LED Display Panel P1.25mm 4K High Fresh Rate 0

SMD1010 Mini LED Display Panel P1.25mm 4K High Fresh Rate 1



1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!



1. Your inquiry related to our products or price will be replied in 24hrs as soon as possible.
2. Protection of your sales information,ideas of design and all your private information
3. Top quality+ reliable price+responsible after service=successful


Technology Training
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.

Documents and Certification
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.

CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.


Application field:

Advertising LED displays, Stadium perimeter LED screen, shopping mall LED billboard for logo showing , bank & stock exchange LED message signs for rates showing , train & bus station , airport , telecommunication LED video wall system forinformation showing and instruction, Stage performances ect.



Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer and also sells it by ourselves.


Q2: What is the control system?
A: We use Our own system or Nova control system.


Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q5: How can you ensure your led display product quality?
A: We have been enrolled in led display industry for almost 12 years, and professional R&D team and skilled QC team with standard process to assure quality products.
