Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P3
Payment & Shipping Terms
Minimum Order Quantity: 1 sqm
Price: usd 400-2200/㎡
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Indoor |
Brightness: |
1200cd/sqm |
Pixel Pitch: |
3mm |
Operating Humidity: |
10%-95%RH |
Refresh Rate: |
1920Hz/3840hz |
Working Voltage: |
AC220V±15% 47~64HZ |
Application: |
Indoor |
Brightness: |
1200cd/sqm |
Pixel Pitch: |
3mm |
Operating Humidity: |
10%-95%RH |
Refresh Rate: |
1920Hz/3840hz |
Working Voltage: |
AC220V±15% 47~64HZ |
P3 P4 P5 Custom Size Fixed Installation Indoor Full Color LED Screen
Quick Details:
1.Product Type:we have indoor fixed installation /rental/small pixel pitch/outdoor advertising/front service /soft/transparent led display,etc. 2.Type:we can customize the product according to customers' needs, you just need to provide the requirements details and also specify the lamp bead brand, ic brand.
3.Quality Assurance: ▲using Nationstar, Nichia, Cree,Kinglight gold and Copper Wire,big size rgb chips, long service life, low failure rate; ▲original pvc plastic and even aluminum material, good toughness, high and low temperature resistance, V0 grade flame retardant, UVresistant 4.Application:shopping mall, large building glass wall, stage background led display, casino, carnival, concert, exhibition, chain shops and clothes shop, even in bank window, etc.
Feature :
1> Price Advantage
We use Entire automatic equipment, so each month; we can up to 1000sqm,
In this case, the cost of purchase material is lower than others.
2> Good quality raw material
LED: Adopting low current, high brightness LED, body antistatic >1000V, LED scope wavelength with in 5nm, so the screen with reliable performance, good consistency, fast response time and long life time.
Mask: All designed by ourselves, using good PC material, not easy to deform
3> Convenient installation
We prepare a full-set installation manual and free training, which will make you easy to install and operate the screen.
Specification:
|
Pixel Pitch |
2.5 mm |
3mm |
5mm |
|
LED Type |
SMD 1921 outdoor LEDs |
SMD 1921 outdoor LEDs |
SMD2121LEDs |
|
Pixel Density |
160,000 dot/m2 |
111,111 dot/m2 |
40,000 dot/m2 |
|
Module Size |
320*160mm |
192x192mm |
320*160mm |
|
Frame Size |
1060( L) x 395(H) x 145mm(W) |
810(L)x350(H) |
1060( L) x 395(H) x 145mm(W) |
|
x165mmW |
|||
|
Frame Materials |
Aluminum |
Aluminum |
Aluminum |
|
Screen Size |
960mm*320mm |
768x288mm |
960mm*320mm |
|
Screen Resolution |
384*128dots |
256*96dots |
192*64dots |
|
Brightness |
>=5000 nits/m2 |
>=5200 nits/m2 |
>=5500 nits/m2 |
|
Contrast |
>8000:1 |
>8000:1 |
>8000:1 |
|
Scan Mode |
1/32 scan |
1/16 scan |
1/8 scan |
|
Power Supply Input |
DC9--24V |
DC9--24V |
DC9--24V |
|
Max. /Ave. Consumption |
540w/180w |
390W / 115w |
480w / 190w |
|
Best Viewing Distance |
1-5M |
2-5M |
3-20M |
|
Fresh Frequency |
>3840Hz |
>3840Hz |
>3840Hz |
|
IC Driver |
ICN2153 |
ICN2153 |
ICN2153 |
|
View Angle |
140°(H)/140°(V) |
140°(H)/140°(V) |
140°(H)/140°(V) |
|
Control Method |
Asynchronous |
Asynchronous |
Asynchronous |
|
Temperature Operating |
zero 40°C~+70°C |
zero 40°C~+70°C |
zero 40°C~+70°C |
|
Working Humidity |
10%–90%RH |
10%–90%RH |
10%–90%RH |
|
Screen Weight |
20 kg |
20 kg |
20 kg |

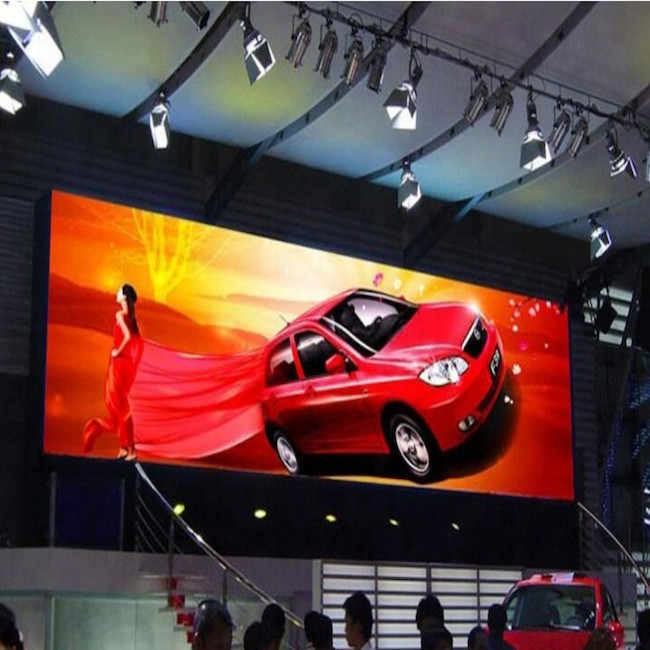

Product Image:
Advantage:
1. Perfect Display Effect
----- High brightness, high refresh rate, large viewing angle and clearly display effect with easy use control system; Aluminum alloy material both for fixed installation and hanging rental.
2. Attractive Factory Price
----- We are a professional manufacturer, has its own factories and production lines. Our price is more competitive, quality is more reliable.
3. Technology Training
----- 1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
----- 2. We will send our engineers to your country by negatiation.
4. CAD Drawing and Fixing
----- 1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
----- 2. We will send our engineers to your place if we are expected after our negotiation.
Description:
1. Half spherical soft covers on the top and front surface of display provide safe guarantee to athlete.
2. With the special removable brackets on the back side of the cabinets, the gradient of display screen could be adjusted easily. These cabinets could also be used for hanging mounting and fixed mounting after removing the brackets.
3. High refresh frequency, high grey level, and no dithering while displaying videos, can be used for live TV program, and The pixel correction technology is available.
4. Sub-screen function of the software realizes multi-window display of the complete screen and is able to show images, text, clock and game score and broadcast live show.
5. The connection between cabinets and brackets is a fold-and-unfold block and tackle. This is a tight and advanced connection which can keep all cabinets consistent on one level.
6. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining.
Service:
Pre-sale service:
1. Inquiries will be replied within 24 hours. 2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3.Free spare parts provided.
Perfect service
1) Guidance service: We can guide on line if customers have questions about the installation and usage. For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
Application:
Indoor led screen is widely used in stadium, shopping mall, station, office and hotel for advertising with characteristics of high brightness, large viewing angle, high safety, long life span, light weight, fast installation and easy maintenance etc. Indoor led display can be mainly divided into mounted screen and pillared screen..
FAQ:
Q1: How about the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: Where is it used for?
A3: indoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q4: Can it play HD video?
A4: Yes, it can realize HD video function with Linsn controlling system.
