Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE ROHS FCC
Model Number: P3.91
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: USD480-1880/㎡
Packaging Details: flight case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Indoor And Outdoor |
Driving Mode: |
1/13 Scan |
Pixel Pitch: |
3.91mm |
Cabinet Size: |
500*1000mm |
Panel Structure: |
Die-casting Aluminum |
Panel Weight(kg): |
6.5kg |
Application: |
Indoor And Outdoor |
Driving Mode: |
1/13 Scan |
Pixel Pitch: |
3.91mm |
Cabinet Size: |
500*1000mm |
Panel Structure: |
Die-casting Aluminum |
Panel Weight(kg): |
6.5kg |
High Performance Rental Stage Led Panel P3.91 Rental LED Display Screen
Quick Details:
● Integrated power design saves time
● Double quick lock design
● More durable, single operation
● Quick installation and maintenance
● Modular design of power control
● No wire is needed to connect
● The cabinet is light and thin
● Unique module design, no left and right
● Private design of PCB
● Same HUB could useing all kinds of pixel
● Wide viewing angle, no reflection
Description:
500x1000mm big panel,speedily and easily mounting,perfect 16:9 colorful image.
Ultra thin body,die-casting aluminum structure,high-accuracy connection,error<0.1mm.
Natural aluminum heat conduction design(no-cooling fan),quiet world.
Specification:
Pixel pitch |
P2.6 |
P2.9 |
P3.91 |
P4.81 |
Pixel density(m2) |
147456 |
112896 |
65536 |
43264 |
LED light package form |
SMD2121 |
|||
Module size(mm) |
250*250 |
|||
Cabinet size(mm*mm*mm) |
500*500*73 |
500*500*73 |
500*500*70 |
500*500*70 |
500*1000*70 |
500*1000*70 |
|||
Cabinet weight(kg) |
7 |
7 |
7/12 |
7/12 |
Cabinet resolution(px*px) |
192*192 |
168*168 |
128*128 |
104*104 |
128*256 |
104*208 |
|||
Horizontal/vertical viewing angle(Deg) |
160/120 |
|||
Brightness(nits) |
600-1000 |
800-1000 |
800-1000 |
800-1000 |
Gray scale |
16 |
|||
Refresh rate(Hz) |
1920/3840 |
|||
Maximum power consumption(W/㎡) |
400 |
|||
Average power consumption(W/㎡) |
120 |
|||
Voltage(V) |
AC 100-240 |
|||
Protection level (front and back) |
IP30 |

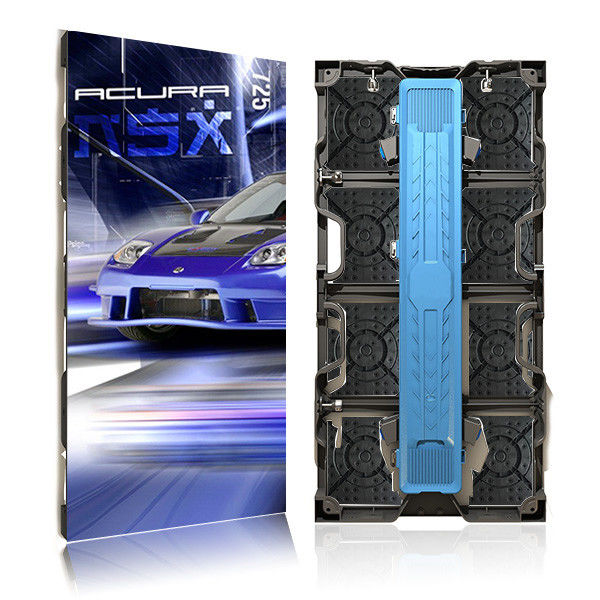

Product Image:
Features:
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2. Module surface flatness ± 0.1mm, the entire screen has good flatness;
3.High uniformity display color;
4. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
5. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
Advantage:
1. New soft mask design ,special soft pad design
2. Adjustable gradient of cabinet (75°~90°)
3. Pyrolytic coating technology for cabinet
4. Excellent waterproof , dustproof and antirust features
5. IP65, high refresh rate assured perfect image
6. All-weather working , and keep good performance in any outdoor environment
Our Service:
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
CAD Drawing and Fixing:
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.
Additional service:
We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
Application:
Widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices,
schools, restaurants, entertainment, enterprises ,highway etc
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Domestic Market(30.00%),North America(15.00%),Western Europe(10.00%),Southeast Asia(8.00%),Eastern Asia(6.00%),South America(5.00%),Northern Europe(5.00%),Mid East(5.00%),Eastern Europe(5.00%),Central America(3.00%),Oceania(3.00%),Africa(2.00%),Southern Europe(2.00%),South Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
outdoor led display,indoor led display,led module,DIP led display,curtain transparent led display
4. why should you buy from us not from other suppliers?
1. Our over 10 years R&D experience make sure our professional solutions design and satisfied aftersales service. 2. We have long term good cooperation with led module raw materials suppliers, different cabinet factories to make sure our quict lead time.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
