Curved Soft Module Flexible 1.5mm For Art Museum Commercial LED Display Screen
Quick Detail:
1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
Description:
High definition and could be adjusted, so it can meet the request of the customers according the application environments.
Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
To picture, video and character, have clear, exquisite and real display effects.Can repair each led lamp, so the cost of maintenance is lower, and easy to repair.
Specification:
| Specificaion | Indoor p1.5 soft module |
| Pixel pitch(mm) | 1.5 |
| Pixel Density(dot/m2) | 409600 |
| Bending time | 1000 without break |
| LED configue | 1r1g1b |
| LED type | SMD1010 |
| Brightness(cd/n2) | 1100 |
| Drive mode | 24s |
| Drive IC | FM6363 |
| Grayscale | 14 bit |
| Refresh Rate(HZ) | 3840 |
| Frame Rate(HZ) | 60 |
| Brightness Ajustment | manual/automatic/remote control |
| Color Temperatur | 9000±500k |
| Best Viewing Distanc | ≥2.5m |
| Module dimension(mm) | 320x160x7 |
| Module weight(kg/pc) | 0.2 |
| Mdoule Resolution(dot) | 96x48 |
| Cabinet Dimension | Randomly splicing |
| Working Voltage | AC 220 |
| Avg. Power Consumption (w/m2) | 260 |
| Max. power Consumption (w/m2) | 600 |
| Serive access | Front and rear |
| Ip grade | IP 30 |
| Working Environment(℃/%RH) | -20~60℃/10~90%RH Without condensation |
| Storage Environment ( ℃/%RH) | -40~80℃/ 10~90%RH |
| Lifetime (H) | Lifetime (H) |
| Compliant Standard | CCC,CE |

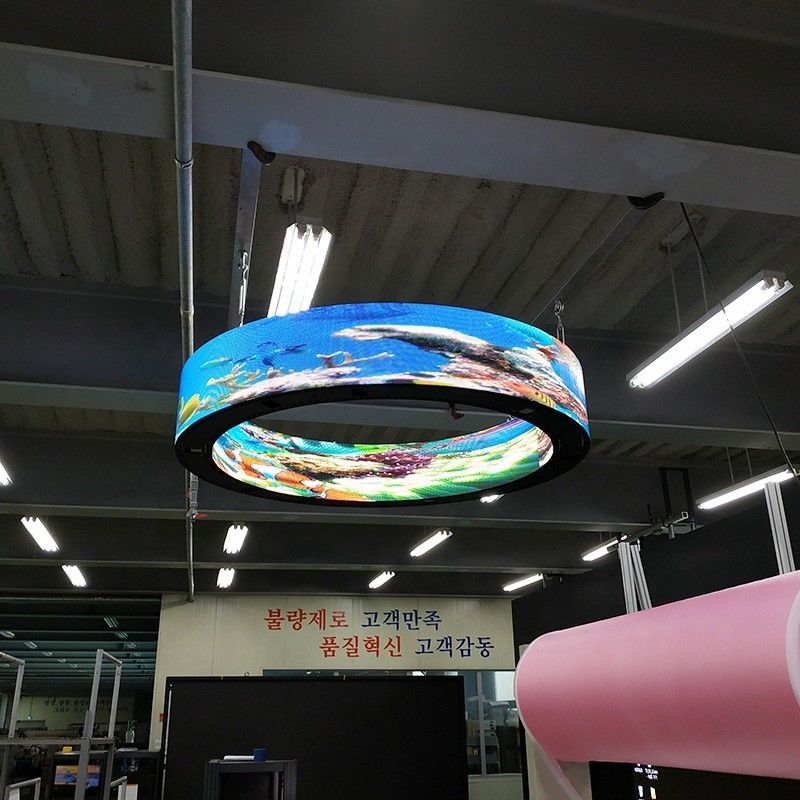

Product Image:
Advantage:
Flexible and bendable
The flexible chassis and soft cover design enable user to bend it freely, so it can be assembled at any any uneven or irregular locations.
Super thin and light
MANNLED Flexible LED Sign is one of the thinnest & lightest LED signs in the world with special materials and advanced technology. Every module is only 9mm thick and has a weight of 280g.
Very easy to splice, install and maintain
Modularization design and no other connected cables make the installation so easy.
User just mounts iron sheet or magnetic product on the surface in the first, then stick
the Flexible LED sign on the surface .
High brightness
MANNLED Flexible LED Sign makes use of the high-brightness SMD method, which makes it tremendously excellent in luminance, uniformity, maintainability compared with the traditional LED dot-matrix displays.
Wide application
Enterprise reception ,appliances stores, sports stores, exhibition hall of fairs , cosmetics counters , shopping
mall. banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment.
Features:
1. special design and advanced SMT technology improves the heat dissipation
2. with high fresh rate controller, guarantee that no scan line when taking photos
3. regular shape and special shape(such as curve,round) can be designed
Our Service:
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Customized design is available,OEM & ODM are welcomed.
5) Warranty: 2 years, a little investment for longer warranty time.
6) Special discount and protection of sales area provided to our distributor.
7) Warmly welcome your visit in our company if available.
Trade Terms:
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton.
2. Shipping port: Shenzhen. China.
3. Shipping freights are quoted according to your requests.
4. Delivery time:5-15 working days.
5. 2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Mid East(30.00%), WesternEurope(20.00%), EasternEurope(15.00%), Oceania(15.00%),South Asia(10.00%),Southeast Asia(5.00%),Eastern Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flexible LED Display,Indoor LED Display,Outdoor LED Display,Transparent LED Display,Rental LED Display
4. why should you buy from us not from other suppliers?
We have 13 years experiences to provide LED display in the industry, We design and manufacture HD small pixel pitch LED screen,flexible LED display custom LED display and irregular displays throughout the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
