320x160mm Curved Flexible Modular LED Display Panels Indoor P4

320x160mm Curved Flexible Modular LED Display Panels Indoor P4

Flexible Modular LED Display Panels

Curved Modular LED Display Panels

160mm led display module

Place of Origin:

China

Brand Name:

Ledmannner

Certification:

CE,FCC,ROHS

Model Number:

P4

Contact Us

Request A Quote
Product Details
Panel Size:
320*160mm
Pixel Pitch:
4mm
Brightness:
≥800 Cd/sqm
Color:
Full Color
Viewing Angle:
140°/140°
Warranty:
1-3years
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD4-900
Packaging Details
wooden case
Delivery Time
5-8work days
Payment Terms
T/T
Supply Ability
10000pcs/month
Product Description

Indoor P4 320*160mm Soft Module Curved Flexible Modular LED Display Panels



Quick Details:

Selling Units:Single item

Single package size:35X10X20 cm

Single gross weight:1.050 kg

Package Type:Carton box led video display red module 320*160mm



Feature:

1. special design and advanced SMT technology improves the heat dissipation
2. with high fresh rate controller, guarantee that no scan line when taking photos
3. regular shape and special shape(such as curve,round) can be designed



Specification:

320*160 series Flexible Module Specification

Item

LF-P2

LF-P2.5

LF-P3

Pixel Pitch

2mm

2.5mm

3mm

Pixel Density

250000dot/m2

160000dot/m2

111111dot/m2

Module Power

25W

25W

22.5W

Module Size

320X160mm

320X160mm

320X160mm

Module Resolution

160X84dot

128X64dot

104X52dot

Scan

1/40

1/32

1/26

Module Weight

0.6kg

0.54kg

0.5kg

LED Configuration

SMD1212

/SMD1515

SMD2121

SMD2121

Brightness

700cd/m2

750cd/m2

750cd/m2

Refresh Rate

1920Hz / 3840Hz

1920Hz / 3840Hz

1920Hz / 3840Hz

Operating Voltage

4.2-5V

4.2-5V

4.2-5V

Rated Current

5A

5A

4.5A

Thickness

8.6mm

8.6mm

8.6mm

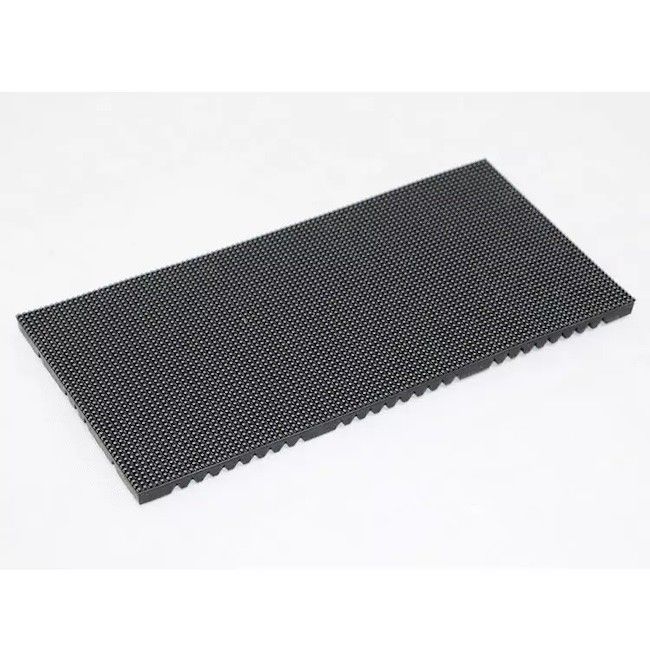

Product Images:

320x160mm Curved Flexible Modular LED Display Panels Indoor P4 0

320x160mm Curved Flexible Modular LED Display Panels Indoor P4 1



Advantages:

Flexible LED screen is ultra-light weight, semi-transparent, rollable, LED video display suitable for both indoor and outdoor applications. It’s specially designed for both backdrop applications and creative LED designs. The soft LED screen is ultra-slim and ultra-lightweight, and increased design opportunities and lowered transportation costs. The soft LED screen adopts high quality LED and chip, the refresh frequency is super high as above 1000Hz, which ensures no flicker or black strip and no image distortion.



Description:

1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:140 inhorizonal and 140 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos
5. regular shape and special shape(such as curve,round) can be designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid audio visual effect



Our Service:

(i) Warranty is for 2 years.
In the warranty period, we will maintain and replace the defect components for free without any man-made damage, but you should pay for shipping fee, both back and forth .After 2 years, we only charge the material cost, you should be responsible for shipment.
(ii) Free training: You can send your engineers to our factory for one week free of charge training, which includes the software operation, installation, adjustment, basic repairing, etc.
(iii) Technical Support: If needed, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such as visa, hotel, food, both trip plane ticket, and also USD150/day/staff (from our engineer’s departure from Shenzhen) and help to arrange our staff's visa.

Packing & Delivery

For Iron cabinet of indoor and outdoor LED display screens, we use wooden case to pack,
For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF



Applications:

We would like to offer you fast suggestion on the project if you can give us the information according to the questions

The main application areas: shopping centers, hospitals, banks, enterprises and public institutions, exhibition hall, hotel, schools, stage, bank, securities, public security, transportation, Industry and Commerce, electricity, customs, hospitals, parks, airports, stations, stadiums and so on.



FAQ:

Q1:How to choose a led display?
A: You should consider 3 simple questions when you choose a led screen by yourself.
1. What's the environment- indoor or outdoor ?
2. Is it for rental use ( need to be moved from one place to another place frequently) or for fixed installation (to be installed in a place permanently)?
3. what is the approximate size of the led screen you would like to purchase?

Q2:Which pixel pitch should i choose?
A: There's a range of pixel pitch from 1.25--30mm, there is a roughly principle-usually small pixel(1.25mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen( for example huge advertisement billboard on a big building).

Q3:Which control system should i choose?
A:There are two kind of control systems on the market-synchronous and asynchronous control system, And for big size led screen(usually more than 20sqm) need to use synchronous control system, below 20sqm it's up to you to use syn or asyn. But asyn control system's refresh rate is much lower than sync control system and which you can use wifi, 3G, 4G etc wireless to control.

Q4:How to order from us?
A: You can place an order by Alibaba online or to our company directly offline, before place an order please confirm with us for every deta.
