IP65 HD P5 P8 Fixed Full Color LED Display Screen High Brightness

Product Details

Place of Origin: China

Brand Name: Ledmanner

Certification: CE FCC ROHS

Model Number: P8

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: USD300-1000/㎡

Packaging Details: wooden case

Delivery Time: 15days

Payment Terms: T/T

Supply Ability: 1000㎡/week

Get Best Price
Product Details
High Light:

full color led display screen Ledmanner


Ledmanner full color led display screen


Ledmanner full color led display screens

Pixel Pitch:
Working Voltage:
Pixel Pitch:
Working Voltage:
Product Description

IP65 Waterproof High Brightness Hd P5 P8 Fixed Outdoor Full Color LED Screen

Quick Detail:
● High cost performance
● Special waterproof design : IP67
● Perfect screen flatness
● Support back service
● 320mm*160mm size module
● Standard 960mm*960mm size cabinet
● Different modules use same cabinet
● Iron cabinet material, can be customized

Product feature:

Support mulit language,Support Support various data transport,Wreless control,Auto download and playback,
1. Adjust the brightness auotomatically
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
3. Information source can be camera, video, VCD, DVD, LD, TV and so on
4. Can be connected with PC and website, and also can be controlled remotely
5. Support Multi language editions, such as English, French, Germany, Greek, Russian etc.
6. Meet all king of weather, very hot and cold temprature


Model P8
Pixel pitch(mm) 8.0
Configuration SMD3535
Module dimension(mm) 320x160
Module weight(kg) 0.37
Panel dimension(mm) 960x960x120
Panel weight(kg) 55
Pixel density(dots/㎡) 15625
Flatness error(mm) ≤0.1
Viewing angle 120°/120°(Horizontal/Vertical)
Brightness(cd/㎡) 6500
Color temperature(K) 5000~9500 (Adjustable)
Contrast 4000:1
Repetition frequency 50/60Hz
Refresh frequency(Hz) 1200
Gray scale 65536
Ave. power(W/㎡) 440
Max power(W/㎡) 1100
Working temp./humidity -10~40℃/10%~80%RH
Storing temp./humidity -20~60℃/10%~85%RH
Panel structure Iron
Maintenance Rear
Protection IP65/IP54
Driving mode Constant current driver
Scanning 1/4
Power requirements AC90~264V, 47~63Hz
Life time(hrs) 100,000
Certificate CCC/TUV-CE/ETL, etc.

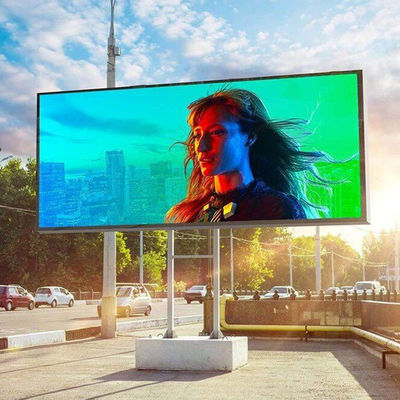

Product image:

IP65 HD P5 P8 Fixed Full Color LED Display Screen High Brightness 0

IP65 HD P5 P8 Fixed Full Color LED Display Screen High Brightness 1


1) With good lightening accordance and no mosaic.

2) Can play different formats of image files, flash, video signal from TV, video and other equipments.

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.



1) High refresh rate, high brightness and high contrast which make the screen with no delay and smear phenomenon in direct sunlight.
2) Energy saving: low electric current, high-bright lamps, equipped with PFC switching power supply that save 30% electricity.
3) The brightness is adjustable to meet the need of changing environment.
4) Convenient installation and maintenance of display screen.



1. Prompt reply .Your inquiry related to our products will be reply within 24 hours;
2. OEM&ODM,diverse models, dimension and design of LED display for customer selection;
3. Protection of your ideas of design and all your private information;
4. Provide free train and skillful engineer will help you solve you problem at your time;
5. Related projects are provided for reference .



1. We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.

2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in factory.

3. After warranty , we also can offer you the parts for replacement at our bottom price.

4. After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

5. We also could solve problems for you until it recovers well by remote control!


What is the shipping package of the product?

Our company currently mainly provides the following packaging types: (1). Cartons: modular cartons and honeycomb cartons; (2). Wooden cases: common and export wooden cases; (3). Airbox; (4). Packaging requirements specified by the customer;


How to install the shipped LED display box into a complete LED screen?

Before shipment, we will classify each material and affix corresponding material identification and number on each package. When shipment, we will provide structure drawing, installation drawing and data connection drawing. In addition, our service engineers are on line 24 hours a day and can consult relevant questions at any time.


How about the after-sale service?

The company has set up a special after-sales service department, which is responsible for the tracking service of this order from the beginning of placing the order. The after-sales service department has service engineers on line 24 hours a day, so that customers can deal with the problems in a timely manner.


How to choose the appropriate LED display for you?

Before you buy the LED display screen, as long as you put forward the use of the product place, purpose, size, we will provide several options for customers to choose according to the requirements.
