Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE ROHS FCC
Model Number: LM-FL6.25
Payment & Shipping Terms
Minimum Order Quantity: 1 sqm
Price: usd 600-2200/㎡
Packaging Details: wooden case or flight case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Indoor |
Panel Size: |
250*250mm |
Cabinet Size: |
500*1000mm |
LED Type: |
SMD 1921 |
Pixel Pitch: |
6.25mm |
Control System: |
Linsn |
Life Span: |
100000H |
Warranty: |
3~5years |
Application: |
Indoor |
Panel Size: |
250*250mm |
Cabinet Size: |
500*1000mm |
LED Type: |
SMD 1921 |
Pixel Pitch: |
6.25mm |
Control System: |
Linsn |
Life Span: |
100000H |
Warranty: |
3~5years |
High Refresh P3.91 3D Waterproof Interactive Programable DJ Dance Floor LED Display Screen
Quick Details:
● Good heat disptach
● Cabinet is made of iron sheet
● Structure is stronger
● The load-bearing performance is high.
● Mask is shock-proof plastic, wear-resistant
● Ledmannner dance floor led display screen is not easy to scratch
Description:
1. Full color by filling the whole of imported silica gel, which makes our products in water, antifreeze, superior high-temperature side
2. After a dustproof and waterproof tested to reach its target IP65
3. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.
4. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness
Specification:
|
Model Number |
P2.976 |
P3.91 |
P4.81 |
P6.25 |
|
Pixel Pitch(MM) |
2.976 |
3.91 |
4.81 |
6.25 |
|
Pixel Composition |
RGB |
RGB |
RGB |
RGB |
|
LED Standard |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
|
Module Resolution(Dots/m²) |
112896 |
65536 |
43264 |
25600 |
|
Module Size(MM) |
250X250 |
250X250 |
250X250 |
250X250 |
|
Module Resolution(Dots/m²) |
84X84 |
64X64 |
52X52 |
40X40 |
|
Cabinet Size(MM) |
500X1000 |
500X1000 |
500X1000 |
500X1000 |
|
Cabinet Weight |
22kg |
22kg |
22kg |
22kg |
|
Cabinet Thickness(MM) |
80 |
80 |
80 |
80 |
|
Runaway Point |
≤3/100000 |
≤3/100000 |
≤3/100000 |
≤3/100000 |
|
Best Viewing Distance(M) |
5-60 |
5-60 |
5-60 |
5-60 |
|
Viewing Angle |
140/140(H/V) |
140/140(H/V) |
140/140(H/V) |
140/140(H/V) |
|
Brightness(CD/m²) |
2500CD/m² |
2500CD/m² |
2500CD/m² |
2500CD/m² |
|
Refresh Rate |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
|
Power Consumption(Ave/W) |
480 |
480 |
400 |
350 |
|
Power Consumption (Max/W) |
800 |
800 |
800 |
800 |
|
Scan |
1/28 |
1/16 |
1/13 |
1/10 |
|
Gray scale |
8192 Lever |
8192 Lever |
8192 Lever |
8192 Lever |
|
Working Humidity |
10%~90%RH |
10%~90%RH |
10%~90%RH |
10%~90%RH |
|
Working Temperature (℃) |
-20℃~+65℃ |
-20℃~+65℃ |
-20℃~+65℃ |
-20℃~+65℃ |
|
Life Span |
≥100000Hours |
≥100000Hours |
≥100000Hours |
≥100000Hours |

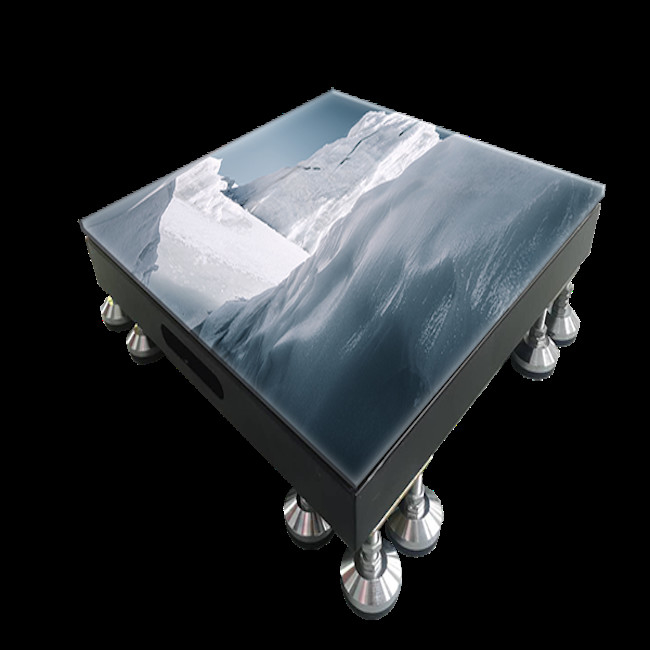

Product Image:
Advantage:
1.Fully waterproof (can be washed directly with water), strong shock resistance, good slip resistance (the actor can jump on it at will, will not slip), the bearing capacity is large (the car can be directly crushed, the load point is 2 tons), A single box can fine-tune the height difference between the cabinets, the mask is PC+ composite material, has anti-UV function, can be exposed to the sun (the screen surface will not yellow), appearance beautiful, high definition, high brightness, good heat dissipation, Easy to install, soft and clear color.
2.One-screen multi-purpose: It can be used as color brick when tiling; it can be used as stage main screen or color screen when stacking or lifting.
3.This product can be upgraded to a sensor screen through sensor or infrared technology to interact with the audience.
Service:
Our team design and make solutions based on different requirements from different customers, what you think is what we can do.
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We provide one professional engineer to one customer to keep fastly reply.
FAQ:
Q1.Can I have a sample order for led display?
A: Yes, we welcome sample order but It's better to have one square meter sample to check the quality
Q2. What about the lead time?
A: Production time needs 35 days for order quantity more than 10 sqm
Q3. Do you have any MOQ limit for led display order?
A: 10 SQM MOQ
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea , It normally takes10-30 days to arrive. Sea shipping also optional.
Q5. How to proceed an order for led display?
1. let us know your size requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the details and places deposit for formal order.
4. We arrange the production.
