Waterproof Floor LED Display Screen High Refresh Dance Interactive P3.91

Waterproof Floor LED Display Screen High Refresh Dance Interactive P3.91

Waterproof Floor LED Display Screen

Floor LED Display Screen High Refresh

Dance interactive floor led

Place of Origin:

China

Brand Name:

ledmanner

Certification:

CE ROHS FCC

Model Number:

LM-FL6.25

Contact Us

Request A Quote
Product Details
Application:
Indoor
Panel Size:
250*250mm
Cabinet Size:
500*1000mm
LED Type:
SMD 1921
Pixel Pitch:
6.25mm
Control System:
Linsn
Payment & Shipping Terms
Minimum Order Quantity
1 sqm
Price
usd 600-2200/㎡
Packaging Details
wooden case or flight case
Delivery Time
20days
Payment Terms
T/T
Supply Ability
1000㎡/week
Product Description

High Refresh Interactive P3.91 Led Floor Display Waterproof Dance Floor LED Display Screen



Quick Details:

● Good heat disptach

● Cabinet is made of iron sheet

● Structure is stronger

● The load-bearing performance is high.

● Mask is shock-proof plastic, wear-resistant

● Ledmannner dance floor led display screen is not easy to scratch



Description:

1. Ultrathin and light weight :
each cabinet weights only 12 kg,easy to install and transport.
2. Noiseless :
Die casting Aluminum cabinets,fanless design with noiseless power supply.
3. Seamless :
High precision CNC maching,precision up to 0.1mm
4. Fast installation and dismanling :
connection lock between cabients are patented,closely combined,safemreliable and adjustable,50 cabinets can be installed in one hour.
5. Unique blanking circuit :
high definition display by eliminatiing the row/line after-image without damaging the LED lamps
6. Energy saving :
low electric current,high-bright lamps,equipped eith PFC switching power supply,save 30% electricity.
7. High refresh rate,high gray level :
if can reach 16bit by using PWM driving IC,refresh rate is more than 4000HZ,the gray level is still high even under the condition of low brightness.
8. Color correction : support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens.
9. Dul back-up :
both power supply and system dual back-up are optional,reliable performance.



Specification:

No.

part

project

P3.91 Indoor Floor Tile Screen

1

Pixel composition

Arrangement form

Vertical

2

Pixel tube spacing

3.91mm

3

Pixel composition

1R1G1B (three in one)

4

Lamp bead model

SMD1921 (chip ratio 3:6:1)

5

Physical density

25600 dots/㎡

6

Module/box size

Module size

250 width x 250 height (mm)

7

Module resolution

64 width x 64 height (dot)

8

Box size

500 (width) × 1000 (height) mm

9

Box weight

22.5KG/pc

10

Box thickness

9cm (including module thickness)

11

Full screen parameters

Out of control point

≤3/100000

12

Unit module splicing seam

The size of the unit board gap splicing seam is the same, and ≤ 2mm

13

Optimal distance

5-60m

14

Perspective

Horizontal 140°, vertical 140°

15

Surface roughness

Maximum error ≤ 2mm

16

Ink color on the screen surface

Consistent ink, no reflection

17

Uniformity

Module brightness is uniform, uniformity 1:1

18

powered by

Use environment

Indoor and outdoor

19

Working humidity range

10% to 90% RH

20

range of working temperature

-20 to 65 ℃

21

Maximum power

600W/㎡

22

Average power

300W/㎡

23

Control System

Control host operating system

XP computer + control software and hardware + playback software and hardware

24

way to control

Synchronize with computer VGA (display synchronization)

25

Control System

DVI graphics card + full color control card + optical fiber transmission

26

input method

Computer and other peripherals, PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI, etc.

27

Screen function technical parameters

LED driver

Constant current drive (16 scans)

28

Computer display mode

640×480, 800×600, 1024×768

29

Refresh rate

2000hz

30

Grayscale/color

Level 8192

31

Whole screen brightness

2000 cd/㎡

32

Service life

More than 100,000 hours

33

Display content

Video DVD, VCD, TV, images, text, animation, and others.

34

Continuous trouble-free working time

≥10000 hours

25

interface

Standard Ethemer network interface, communication adopts RS-422

36

Communication medium, control distance

Multi-mode optical fiber <500m, single-mode optical fiber transmission <30km, Category 5 cable <100m

37

Protection technology

Moisture-proof, dust-proof, anti-corrosion, anti-static, anti-lightning, and has the functions of over-current, short-circuit, over-voltage and under-voltage protection

38

software

General LED video playback software (conventional),



Product Image:

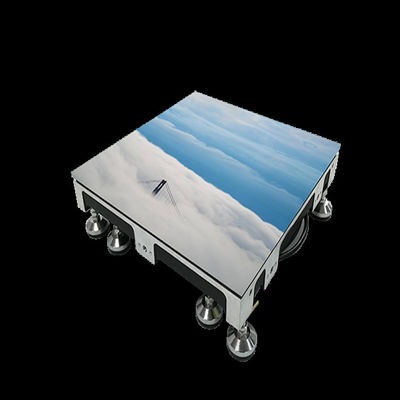

Waterproof Floor LED Display Screen High Refresh Dance Interactive P3.91 0

Waterproof Floor LED Display Screen High Refresh Dance Interactive P3.91 1



Advantage:

1.Fully waterproof (can be washed directly with water), strong shock resistance, good slip resistance (the actor can jump on it at will, will not slip), the bearing capacity is large (the car can be directly crushed, the load point is 2 tons), A single box can fine-tune the height difference between the cabinets, the mask is PC+ composite material, has anti-UV function, can be exposed to the sun (the screen surface will not yellow), appearance beautiful, high definition, high brightness, good heat dissipation, Easy to install, soft and clear color.

2.One-screen multi-purpose: It can be used as color brick when tiling; it can be used as stage main screen or color screen when stacking or lifting.

3.This product can be upgraded to a sensor screen through sensor or infrared technology to interact with the audience.



Feature:

1, Screen cabinet is made of die-casting aluminum material, The effect of heat dissipation is remarkable.

2, Light weight, the weight of the cabinet is 12 kg; easy installation.

3, The module can be quickly removed and easy to maintain.

4, Simply perfect appearance,cabinet is adopted die casting moulding, high precision and can be realized fine adjustment.

5, Has a great universality and easy to upgrade.



Service:
OEM service
We make best design with high cost- efficiency according to the actual needs of our customers.UOCOLOR has been focused on international market since the beginning and develop products strictly according to related standards and requirments of different regions,to provide customers more value space.
On-site service
Upon the customers request,UOCOLOR can dispatch engineers to the country for installation service.
Installation of LED display frame,screen and control center
Cabling and power distribution
Site cleaning
System debugging,commissioning and test
After-sales service
Our after-sales engineers have been in LED field for more than 7 years who will give the customer the most professional guidance about LED.
Repairing service.During the warranty period,we will repair the equipment units free of charge unconditionally.
Software upgrading service.After our customer purchases our LED display,we will also provide our customer with the service of software upgrading free of charge.



FAQ:

Q1. What is the MOQ?

A: 1 pc panel, but we suggest to get a bigger video wall to check better visual experience.



Q2. How do you protect the dance floor led display from damage by dance and jump?

A: The LED lamp beads are treated with advanced gluing technology, also the modules are covered by acrylic plates with a certain thickness and strength, anti-scratch, anti-skidding.



Q3: How to control the display contents?

A: We use Novastar/Colorlight control system, use the HDMI to reach sync. control.



Q4: If the floor is not flat, how to make sure the flatness of the dance floor LED display?

A: The height of supporting legs at the bottom can be adjusted to achieve good flatness .



Q5: Do you test your dance floor LED display?

A: Yes, we have 100% test for 72hrs before delivery..
