Product Details
Place of Origin: Shenzhen
Brand Name: ledmanner
Certification: CE ROHS FCC
Model Number: P4
Payment & Shipping Terms
Minimum Order Quantity: 1㎡
Price: RMB3500-8000/㎡
Packaging Details: carton or flight case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Indoor |
Panel Size: |
256*128mm |
Pixel Pitch: |
P4 |
Supplier Type: |
Original Manufacturer, ODM, OEM |
Refresh Rate: |
3840Hz |
Product Name: |
P4 Curved LED Video Display Soft Screen |
LED Chip: |
Epistar |
Scan: |
1/16s |
Application: |
Indoor |
Panel Size: |
256*128mm |
Pixel Pitch: |
P4 |
Supplier Type: |
Original Manufacturer, ODM, OEM |
Refresh Rate: |
3840Hz |
Product Name: |
P4 Curved LED Video Display Soft Screen |
LED Chip: |
Epistar |
Scan: |
1/16s |
Indoor Rental Big Events Curve Shaped Modules Flexible Led Display Screens
Quick Details:
* High Resolution. 62500 pixels per sqm. 4 to 100 meters from the screen visual distance can obtain excellent viewing effect.
* Extra Long Life. Epistar Chip, NationStar led lamps and MBI 5124IC.
* Easy Operation. The simple structure and easy operation enable clients to save money, labor and worries.
* Widely Applications: commercial dining, glasses shop, sports, transportation, special places, theme parks, etc,.
Functions:
Specification:
| Model | flexible led display screens |
| Pixel pitch (mm) | 4 |
| Configuration | SMD2121/1515 |
| Module dimension (mm) | 256*128 |
| Module resolution(dots) | 64x 32 |
| Module weight(kg) | 0.28 |
| Pixel density(dots/㎡) | 62500 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/140(Horizontal/Vertical) |
| Brightness(cd/㎡) | ＜1000 |
| Brightness adjustment | 256 levels by software |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | ≥1920 |
| Gray scale(bit) | 16bit |
| Ave. power(W/㎡) | 275 |
| Max power(W/㎡) | 550 |
| Working temp./humidity | -20~45℃/10%~80%RH |
| Storing temp./humidity | -30~60℃/10%~85%RH |
| Scanning | 1/16S |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance |
CAT cable:<100m; Single mode fiber:<10km |
| Installation type | Fix and Rental |
| Life time(hrs) | 100,000 |
| Data input | RF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc. |
| Module material | Flexible PCB soft |
| Certificate | CCC/TUV-CE/Rohs, etc. |

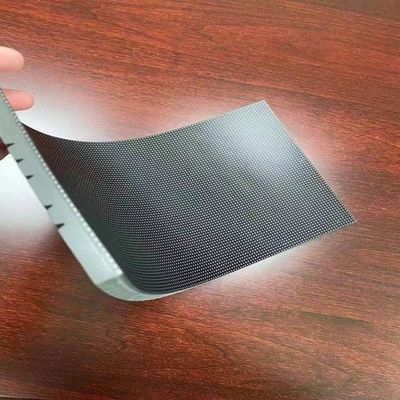

Product Image:
Advantages:
1. OEM manufacturing welcome
2. Sample order is available
3. We will reply you for your inquiry in 24 hours.
FAQ:
Q1:How to choose a led display?
A: You should consider 3 simple questions when you choose a led screen by yourself.
1. What's the environment- indoor or outdoor ?
2. Is it for rental use ( need to be moved from one place to another place frequently) or for fixed installation (to be installed in a place permanently)?
3. what is the approximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A: There's a range of pixel pitch from 1.25--30mm, there is a roughly principle-usually small pixel(1.25mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen( for example huge advertisement billboard on a big building).
Q3:Which control system should i choose?
A:There are two kind of control systems on the market-synchronous and asynchronous control system, And for big size led screen(usually more than 20sqm) need to use synchronous control system, below 20sqm it's up to you to use syn or asyn. But asyn control system's refresh rate is much lower than sync control system and which you can use wifi, 3G, 4G etc wireless to control.
