Product Details
Place of Origin: China
Brand Name: Ledmanner
Certification: CE FCC ROHS
Model Number: P4
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: USD300-1000/㎡
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Outdoor |
Type: |
P4 |
Pixel Pitch: |
4mm |
LED Chip: |
Epistar |
Configuration: |
SMD1921 |
Cabinet Material: |
Waterproof Iron Cabinet |
Application: |
Outdoor |
Type: |
P4 |
Pixel Pitch: |
4mm |
LED Chip: |
Epistar |
Configuration: |
SMD1921 |
Cabinet Material: |
Waterproof Iron Cabinet |
P4 Stop Destination Sign Bus/Car Outdoor Full Color LED Screen
Quick Detail:
● High cost performance
● Special waterproof design : IP67
● Perfect screen flatness
● Support back service
● 320mm*100mm size module
● Standard 960mm*960mm size cabinet
● Different modules use same cabinet
● Iron cabinet material, can be customized
Product feature:
1,High precision: cabinet is processed by CNC. Locating design is unique. Jointing is seamless
2,Reliability: high strength, excellent heat dissipation
3,Fast Assembling: quick lock makes cabinet assembly easy and fast
Specification:
|
Item |
P6.67 |
P4 |
|
Pixel Pitch |
6.67mm |
4mm |
|
Drive Mode |
1/6 Scan |
1/10 Scan |
|
Cabinet Size |
960x960mm |
960x960mm |
|
Cabinet Weight |
25KG/pc |
25KG/pc |
|
Brightness |
6500nits |
5500nits |
|
Viewing Angle |
Horizontal:160° Vertical:160° |
Horizontal:160° Vertical:160° |
|
Ave. Power Consumption |
300W/sqm |
250W/sqm |
|
Life Span |
100000hours |
100000hours |
|
Working Temperature |
- 40℃ ~ + 80℃ |
- 40℃ ~ + 80℃ |
|
Waterproof |
Front IP65, Rear IP65 |
Front IP65, Rear IP65 |
|
Access |
Front & Rear |
Front & Rear |

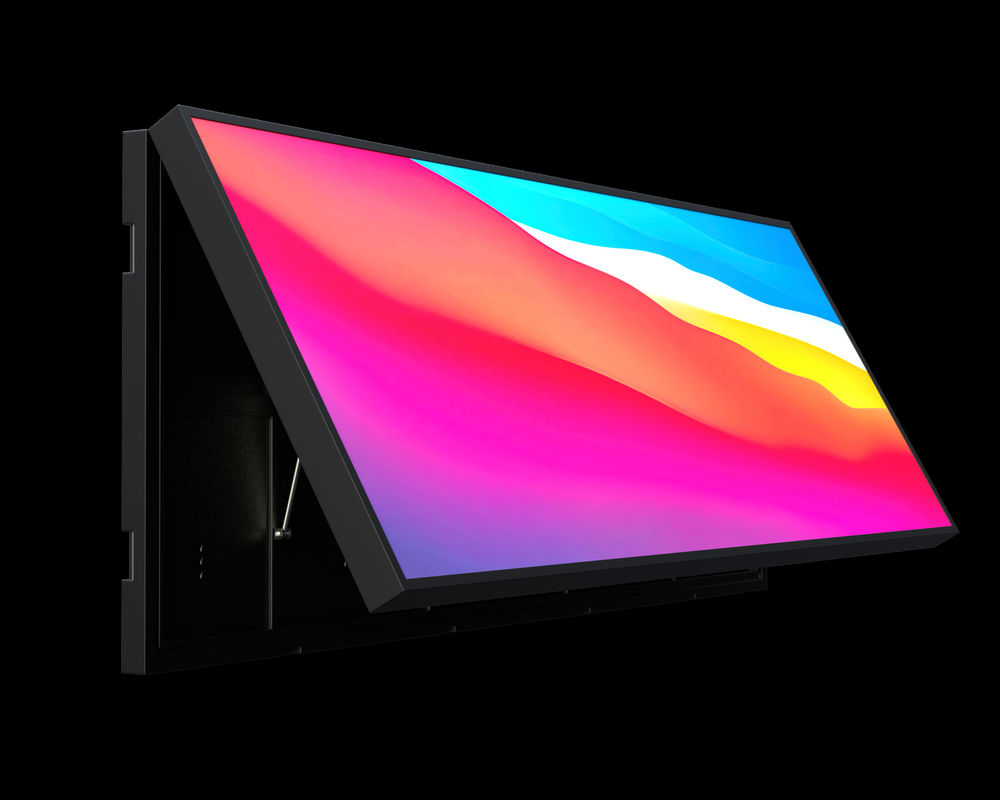

Product image:
Description:
1) Waterproof, stable product performance at -20 to +70 degrees
2)Excellent Quality,Pass ISO9001:2000
3)Low Power Comsuption, Energy Saving
4)High Brightness,Long Lifespam
5)Fast & easy installation, cabinets can be removed from the display while hung up
6)Both can be hung up or stacked up
7)Easy and fast installation,Timely Delivery
Advantage:
----- Professional LED screens& LED Displays Manufacturer;
----- Highly resolution, good image effect, easy to install and convenient to carry;
----- Resonable price, good uniformity, stable capability and high brightness;
----- Aluminum alloy material both for fixed installation and hanging rental;
Application:
This kind of LED full color led video wall is appliled for advertising, city beautifying, information publicity, great concerns and relative activities.
·--- Outdoor advertising, digital billboards, advertising in big companies
·--- Sports halls, fields, playgrounds.
·--- Airports, bus stations and railway passenger terminals.
·--- Facades of shopping malls, department stores, banks and car dealerships.
Our Services:
Our company provides on site product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.
FAQ:
Q1: Can you assign engineer to our site to guide the installation if we require?
A1: Yes. We have qualified and experienced engineers who are ready to service for you.
Q2: Where is it used for?
A2: Indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
