Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P3.91-7.8
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: usd600-1500/㎡
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 500㎡/week
Application: |
Indoor |
Color: |
Full Color |
Pixel Pitch: |
3.91-7.82 |
Input Voltage (AC: |
110V / 240V |
Life Span: |
100000hours |
Brightness: |
3500-4200 Cd/㎡ |
Application: |
Indoor |
Color: |
Full Color |
Pixel Pitch: |
3.91-7.82 |
Input Voltage (AC: |
110V / 240V |
Life Span: |
100000hours |
Brightness: |
3500-4200 Cd/㎡ |
P3.91-7.8 1000*1000 High Brightness Glass Window Transparent LED Display Panel
Features:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect.
4) Big viewing angle to 120-150 degree at horizontal line, 120-150 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.
Description:
Glass LED displays are a dynamic way to market your brand to the public. It is an effective way to draw customers’ attention to your shop, hotel, restaurant, jewelry store, or any other business. Moreover, it gives you creative freedom and costs much less than other forms of advertising. You can change your display every other day without having to incur expensive costs.
Additionally, LED displays are more interactive than run-of-the-mill advertising. Having animated image transitions on the display, for instance, is more refreshing than just a still image. More so given the crisp colorful images transmitted by Ledmanner transparent LED displays.
Specification:
Mode | P2.84 | P3.91 |
LEDs | 1R1G1B | 1R1G1B |
LED type | SMD1415 | SMD1921 |
Pixel pitch | W2.84mm*H6.25mm | W3.91mm*H7.81mm |
Unit size | W1000mm*H500mm*D50mm | |
Unit resolution | 352*80dots | 256*64 dots |
Resolution | 56320dots/㎡ | 32768dots/㎡ |
Transparency rate | 60% | 70% |
Brightness | 3000CD/㎡ | 800/1500/4000/5000CD/㎡ |
Cabinet Weight | 5KG | 5KG |
Max consumption | 800W/㎡ | |
Adv consumption | 240W/㎡ | |
Refresh rate | ≥3851Hz | ≥3840Hz |
Working temperature | ﹣10℃~51℃ | ﹣10℃~40℃ |
Life time | ≥100,000 hours | |
Input voltage | AC170~240V | |
Mode | TS10.42 | TS15.625 |
LEDs | 1R1G1B | 1R1G1B |
LED type | SMD1921 | SMD3535 |
Pixel pitch | W10.42mm*H10.42 mm | W15.625mm*H15.625 mm |
Unit size | W1000mm*H500mm*D50mm | |
Unit resolution | 96*48dots | 64*32dots |
Resolution | 9216dots/㎡ | 4096dots/㎡ |
Transparency rate | 65% | 75% |
Brightness | 4000CD/㎡ | 4000CD/㎡ |
Cabinet Weight | 6KG | 6KG |
Max consumption | 700W/㎡ | 600W/㎡ |
Adv consumption | 200W/㎡ | 180W/㎡ |
Refresh rate | ≥3851Hz | ≥3840Hz |
Working temperature | ﹣10℃~51℃ | ﹣10℃~40℃ |
Life time | ≥100,000 hours | |
Input voltage | AC110~240V |

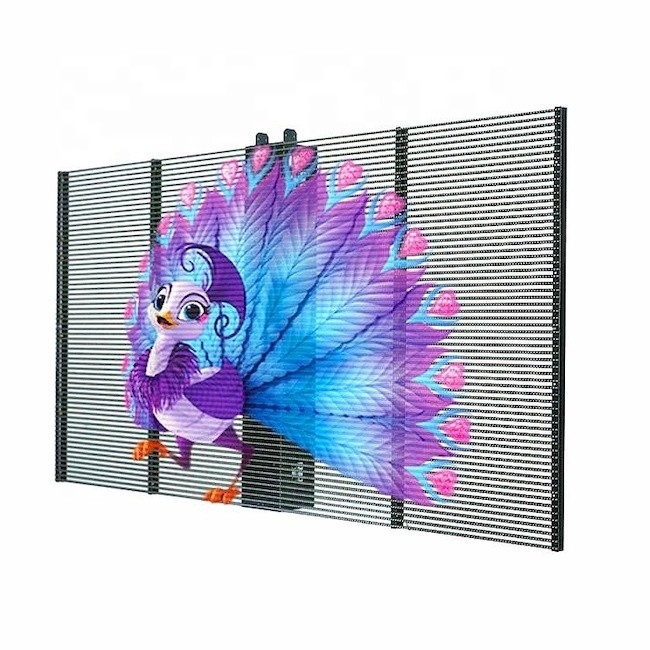

Product Picture:
Advantage:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
After-sales service:
1. Two year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
FAQ:
1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
