Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE
Model Number: P3.91-7.8
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: usd600-1500/㎡
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 500㎡/week
Application: |
Indoor |
Color: |
Full Color |
Pixel Pitch: |
3.9-7.82 |
Input Voltage (AC: |
110V / 240V |
Warranty: |
2-3 Years |
Scan Mode: |
1/16scan |
Application: |
Indoor |
Color: |
Full Color |
Pixel Pitch: |
3.9-7.82 |
Input Voltage (AC: |
110V / 240V |
Warranty: |
2-3 Years |
Scan Mode: |
1/16scan |
Clear Wall P3.91mm Indoor Mesh Curtain Digital Transparent LED Display Panel
Features:
1) With good lightening accordance and no mosaic
2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Description:
High Degree of Visibility
70% transparent see-through, so it is convenient for people inside and outside to look-through. The integrated LED lamps are very tiny and almost invisible from outside of the building.
Compact Design and Light Weight
7.5 mm thickness of the LED panel has it almost suitable for any glass wall building. The weight is only 6kg/cabinet and minimizes the load to the glass wall.
Ease of the Installation and Maintenance
No need to change any building structure. The modules can be stuck to the back of the glass wall by the special glue which presented by us. It needs only 10 second to install one module. Should any maintenance occurs, it only requires to do it at the indoor.
Multi-Control Systems
Synchronous and asynchronous systems for option.
High Quality Receiving Card The A5s is a high-end small receiving card developed by NovaStar. A single A5s loads up 320×256 pixels (8bit), or256×256 pixels (10bit/12bit). Supporting the pixel level brightness and chroma calibration, individual Gammaadjustment for RGB, and 3D functions, the A5s can greatly improve the display effect and user experience.
Specification:
项目 Item | 参数 Parameter |
产品型号 Model Number | P3.91-16S |
模组尺寸 Module size | 500mm*125mm |
物理点间距 Pixel pitch | 3.91mm |
物理密度 Pixels Density | 32768 dots/m2 |
发光点颜色 Pixel configuration | 1R1G1B |
LED封装 Package mode | SMD1921 |
模组分别率 Pixel resolution | 128dots(W)*16 dots(H) |
驱动方式 Drive type | Constant drive (2038S+5958) |
扫描方式 Scan mode | 1/16 scan |
接口方式 Port type | Custom Interface |
箱体尺寸 Cabinet size | 1000*500mm or 1000*1000mm |
箱体分辨率 Cabinet resolution | 256dots(W)*64dots(H) |
模组功率 Module power | 4.5A |
箱体功率 Cabinet power | 35A |
接收卡 Receiving card | 诺瓦 Nova Star A5S |
白平衡亮度 Brightness of white balance | ≥3000-3500cd/m2 |

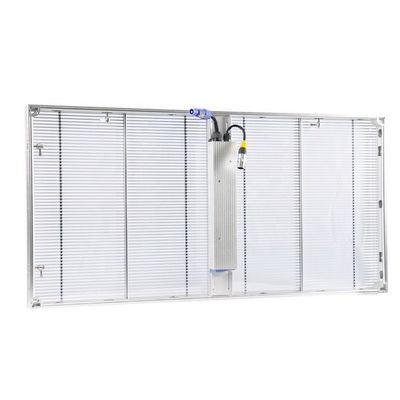

Product Picture:
Advantage:
1. Brightness uniformity less then 5%, and the maximum uniformity can reach 1%
2. On line pixel inspection function : inspect each disabled pixel and remote transmission
3. Automatic brightness adjustment: adjust the brightness of the screen according to the ambient brightness, thus avoiding the waste of brightness and reducing power consumption
4. Large horizontal and vertical viewing angle
5. Led module can remain constant in the hight and low temperature environment
6. Gray scale of 16 bits, and contrast of 1000:1
7. No water standing and no dust accumulating
After-sales service:
1. The price depends on the quantity.We can offer you the best competitive price with the same even better quality.
2. Good after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
5. Help you design OEM&ODM or any your customized lightings and put into production.
6. Distributorship are offered for your unique design and some our current models
FAQ:
Q1: How could I buy the products I need if there is no price in the website?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What kind of warranty do you offer?
A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty.
Q4: How is the after sales service?
A: We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q5: What kind of payment methods do you have as a manufacturer?
A: We take T/T , Western union, L/C and cash as payment term.
