Product Details
Place of Origin: China
Brand Name: Ledmanner
Certification: CE FCC ROHS
Model Number: P10
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: USD300-1000/㎡
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Outdoor |
Type: |
P10 |
Pixel Pitch: |
10mm |
Module: |
320*160 |
Repetition Frequency: |
1920hz |
Viewing Angle(°): |
120°/120°(Horizontal/Vertical) |
Application: |
Outdoor |
Type: |
P10 |
Pixel Pitch: |
10mm |
Module: |
320*160 |
Repetition Frequency: |
1920hz |
Viewing Angle(°): |
120°/120°(Horizontal/Vertical) |
P10 Full Color SMD RGB Big Advertising Billboard Outdoor Full Color LED Screen
Quick Detail:
● High cost performance
● Special waterproof design : IP67
● Perfect screen flatness
● Support back service
● 320mm*160mm size module
● Standard 960mm*960mm size cabinet
● Different modules use same cabinet
● Iron cabinet material, can be customized
Product feature:
1) With good lightening accordance and no mosaic
2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Specification:
Pixel Pitch |
10mm |
LED Configuration |
SMD3535 |
Pixel Density |
10000pixels/sqm |
Module Size |
320*160mm |
Cabinet Szie |
960mm*3960mm |
Cabinet Resolution |
96*96pixels |
Cabinet Material |
Iron |
Cabinet Weight |
45Kg |
Brightness |
5500cd/sqm |
Color Temperature |
3500K-9500K |
Viewing Angle |
H:160°/V:160° |
Ave Power Consumption |
400W/sqm |
Max Power Consumption |
10000W/sqm |
Drive Mode |
1/4scan |
Best Viewing Distance |
≥5m |
Input Voltage |
AC220V/50HZ or AC110V/60HZ(±10%) |
Output Voltage |
5V 40A |
Refresh Rate |
≥1920Hz |
Frame Rate |
50/60Hz/sec |
Protection Level |
IP65 |
Life Span |
100,000hours |
Malfunction dot rate |
<0.0001 |
Storage Temp/Humidty |
—40~+60°C/10-80%RH |
Operating Temp/Humidty |
—25~+50°C/10-90%RH |
Input Signal |
RF,TV.RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc |

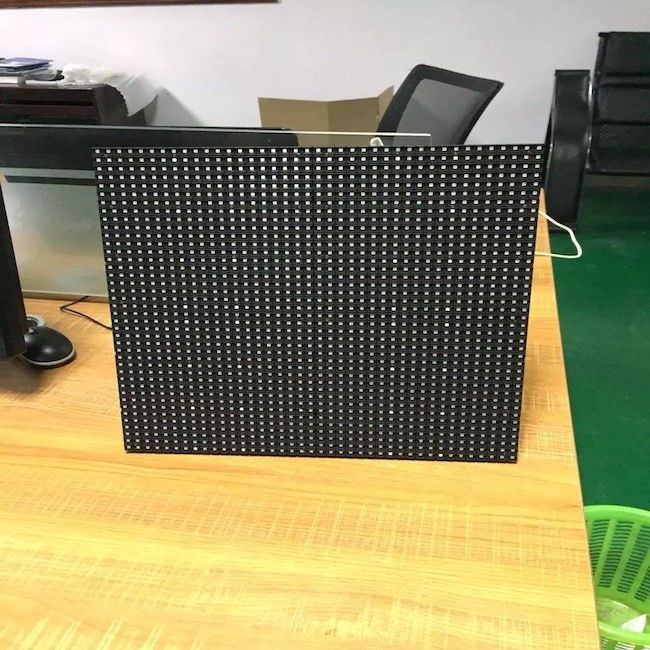

Product image:
Advantage:
----- Professional LED screens& LED Displays Manufacturer;
----- Highly resolution, good image effect, easy to install and convenient to carry;
----- Resonable price, good uniformity, stable capability and high brightness;
----- Aluminum alloy material both for fixed installation and hanging rental;
Description:
1. The cabinet is made of Die-Casting aluminium , so can be spliced with no crack. The thickness of the cabinet is only 80mm. The assembling can be much quicker and more efficient for no tools is needed, which help customers to transportand mount without any difficulties ,reduce the cost of use greatly!
2. The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.
3. Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning.
4. Which help customers to transport and mount without any difficulties ,reduce the cost of use greatly!
5. Suitable forindoor, commercial applications, banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.
Warranty:
1. We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in factory.
3. After warranty , we also can offer you the parts for replacement at our bottom price.
Service:
1. Prompt reply .Your inquiry related to our products will be reply within 24 hours;
2. OEM&ODM,diverse models, dimension and design of LED display for customer selection;
3. Protection of your ideas of design and all your private information;
4. Provide free train and skillful engineer will help you solve you problem at your time;
Application:
This kind of LED full color led video wall is appliled for advertising, city beautifying, information publicity, great concerns and relative activities.
·--- Outdoor advertising, digital billboards, advertising in big companies
·--- Sports halls, fields, playgrounds.
·--- Airports, bus stations and railway passenger terminals.
·--- Facades of shopping malls, department stores, banks and car dealerships.
·--- Architecture and social projects, information systems in cities.
·--- Show-business, concerts, festivals, motor shows and other public events.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
