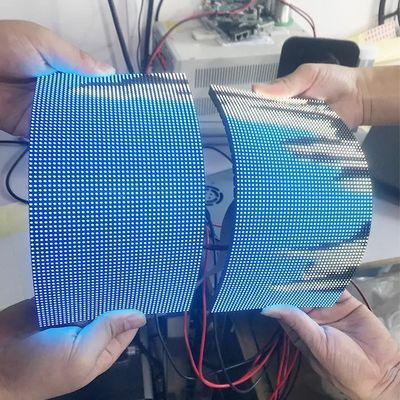

P3 320*160mm Advertising Curve Shaped Modules Flexible Led Display Screens
Quick Details:
* High Resolution. 111111 pixels per sqm. 3 to 100 meters from the screen visual distance can obtain excellent viewing effect.
* Extra Long Life. Epistar Chip, NationStar led lamps and FM6363.
* Easy Operation. The simple structure and easy operation enable clients to save money, labor and worries.
* Widely Applications: commercial dining, glasses shop, sports, transportation, special places, theme parks, etc,.
Description:
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2. Thin cabinet:the thickness is only 6.5 CM, the space of the screen is small , and the entire screen will be more beautiful.
3. Flat screen:smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.
4. Quick dismounting:adopt fast locking structure connected, firm, quick, beautiful.
Specification:
| Model | flexible led display screens |
| Pixel pitch (mm) | 3 |
| Configuration | SMD2121 |
| Module dimension (mm) | 320*160 |
| Module resolution(dots) | 104x 52 |
| Module weight(kg) | 0.28 |
| Pixel density(dots/㎡) | 111111 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/140(Horizontal/Vertical) |
| Brightness(cd/㎡) | ＜1000 |
| Brightness adjustment | 256 levels by software |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | ≥1920 |
| Gray scale(bit) | 16bit |
| Ave. power(W/㎡) | 275 |
| Max power(W/㎡) | 550 |
| Working temp./humidity | -20~45℃/10%~80%RH |
| Storing temp./humidity | -30~60℃/10%~85%RH |
| Scanning | 1/16S |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance |
CAT cable:<100m; Single mode fiber:<10km |
| Installation type | Fix and Rental |
| Life time(hrs) | 100,000 |
| Data input | RF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc. |
| Module material | Flexible PCB |
| Certificate | CCC/TUV-CE/Rohs, etc. |
Product Image:
Features:
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:140 inhorizonal and 140 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos

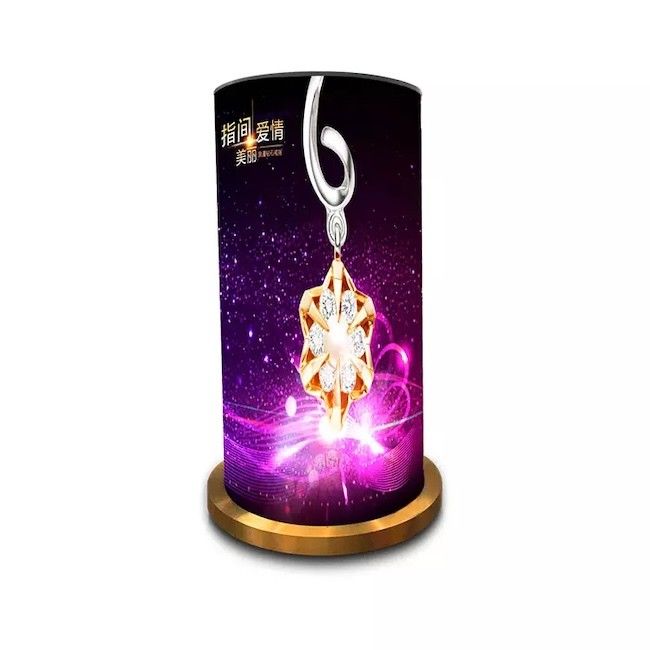

5. regular shape and special shape(such as curve,round) can be designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid audio visual effect
Advantage:
1. Competitive price with high quality.
2. The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.
3. Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning.
Our Services:
1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
FAQ:
Q1: When will you make the delivery?
A1: We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q2: What technical supports can you offer?
A2: We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q3: How long is the warranty?
A3: The standard warranty is 1 year. It could be longer upon request.
Q4: Do you provide any free spare parts in each order?
A4: Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
